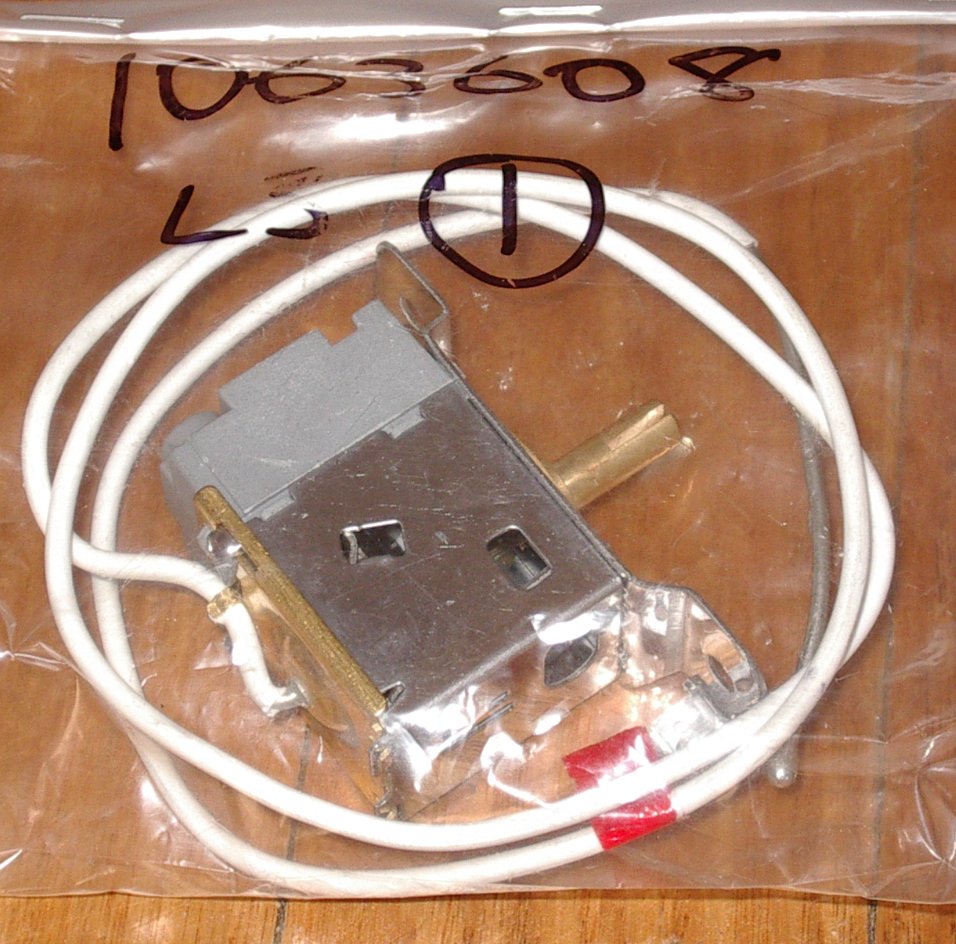

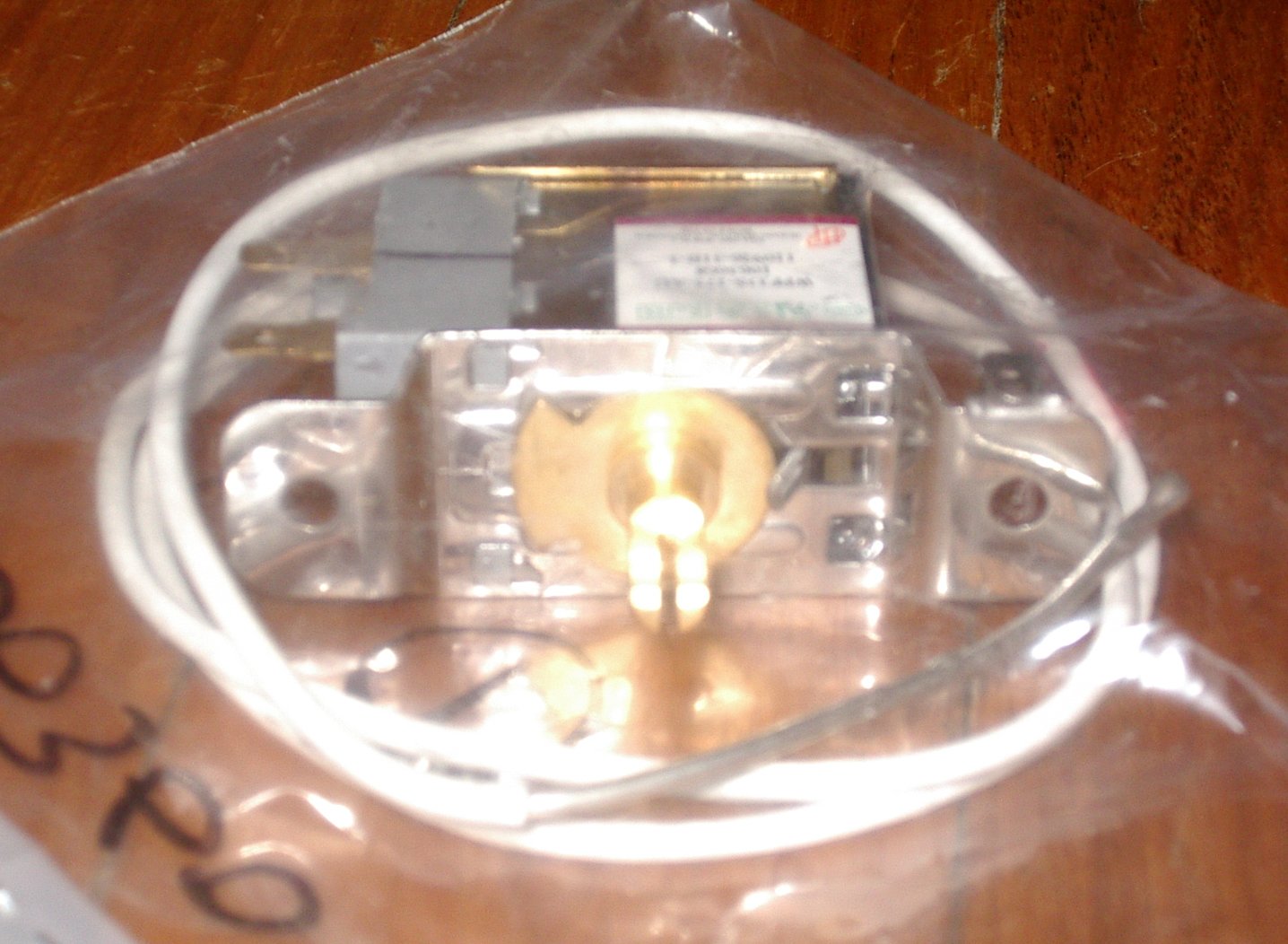

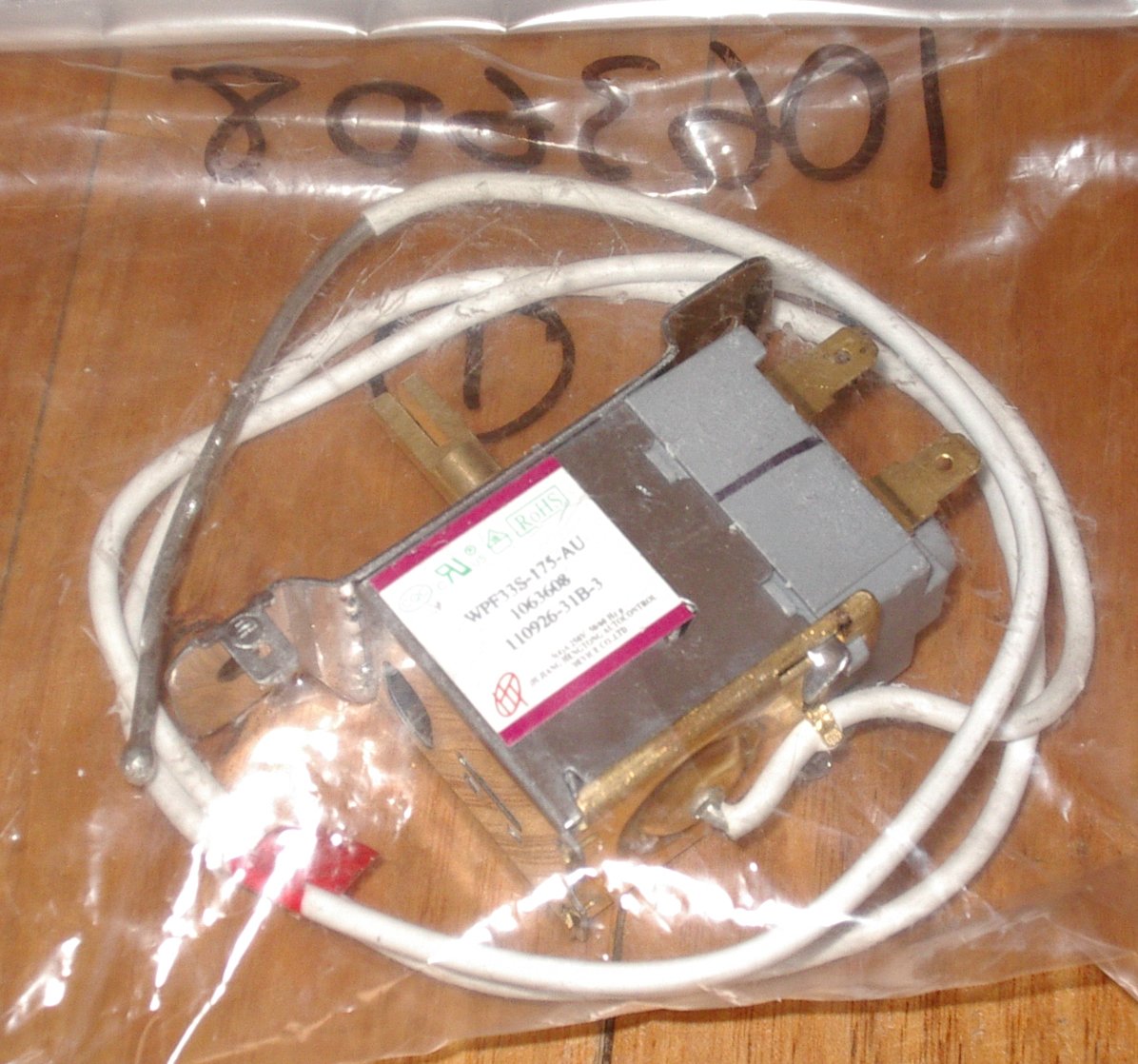

Westinghouse Asian Upright Freezer Thermostat - Part # 1063608, WPF33S-175-AU

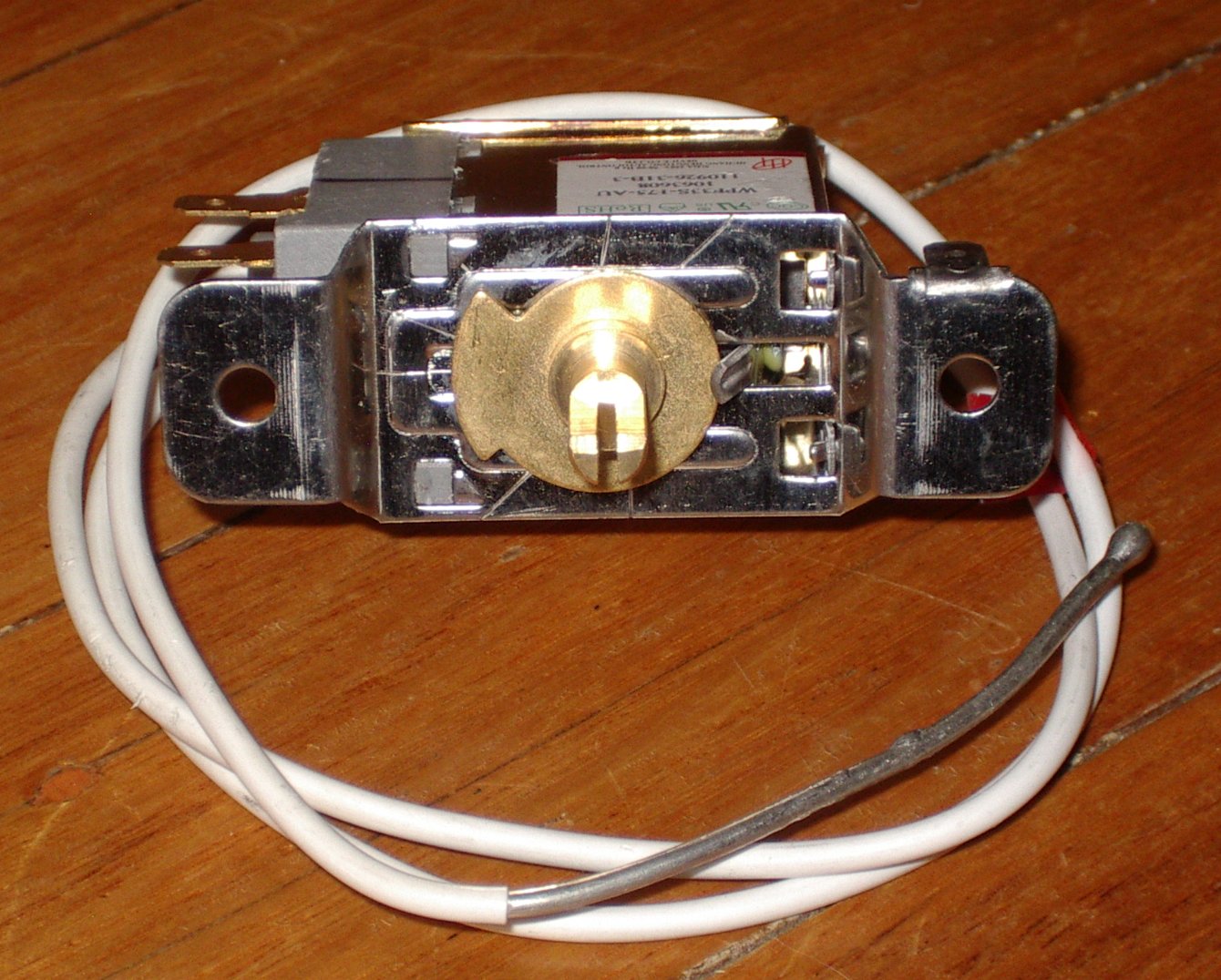

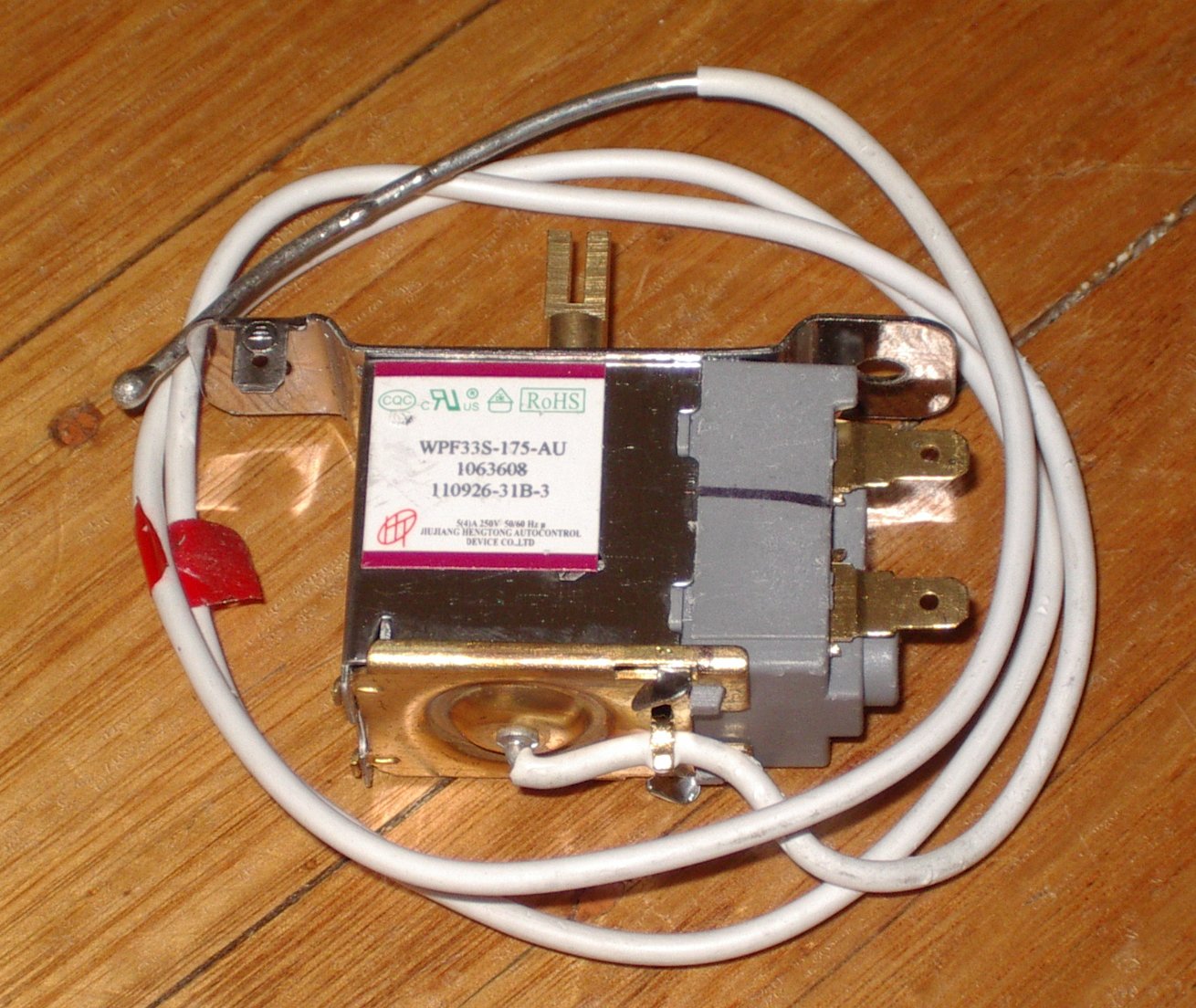

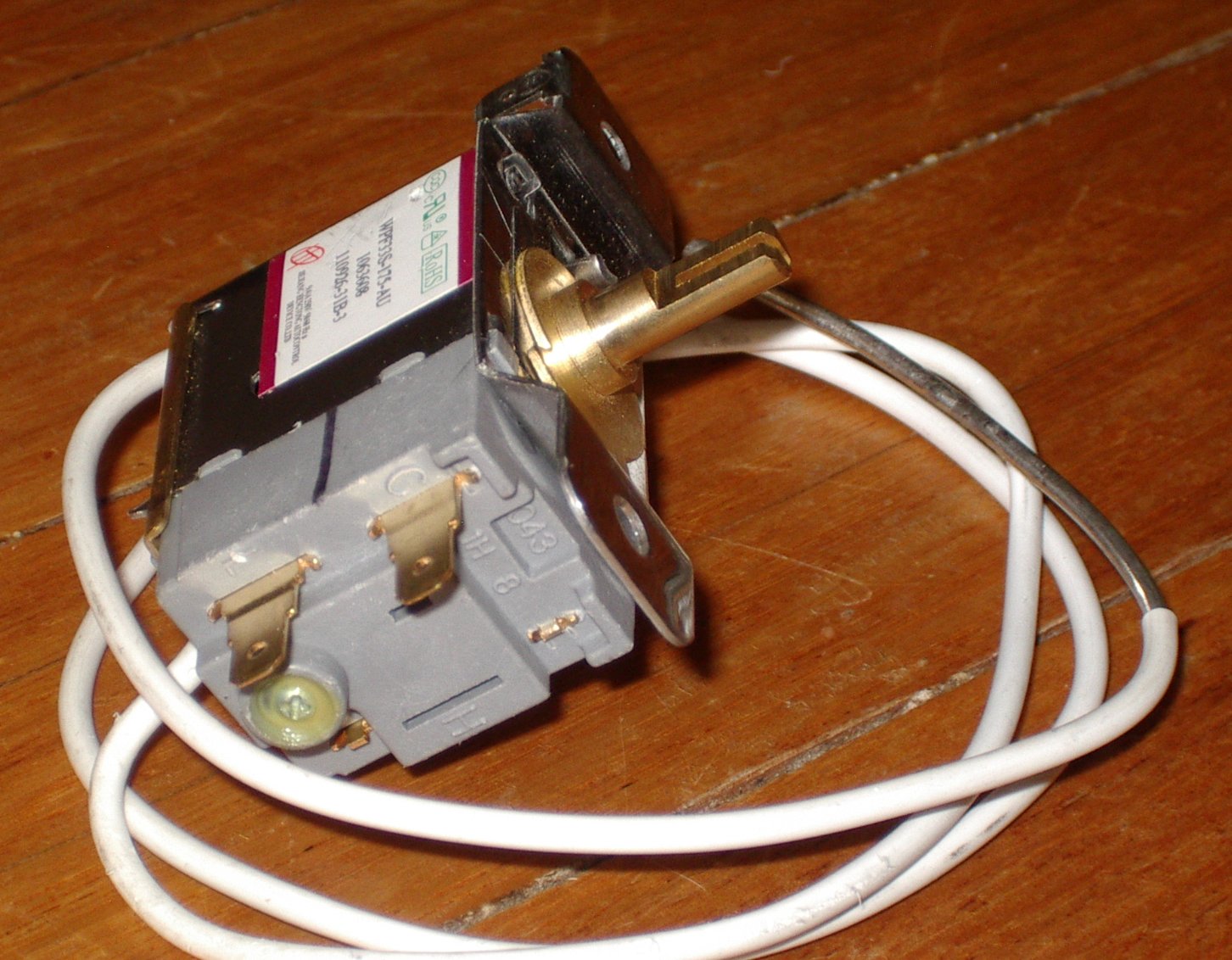

This is a Westinghouse standard upright freezer thermostat, specifically Part No. 1063608. It's equivalent to part No. 9140700199. The numbers on the thermostat are WPF33S-175-AU, 1063608, and 110926-31B-3. It's a great fit for some Asian-made Westinghouse upright freezers, including models WFM1800SC, WFM1800WC, and FR181T. The mounting holes are 54mm apart, the capillary is 700mm long, and it has 4.8mm spade terminals and a 5.7mm D-shape shaft. The thermostat capillary is positioned near the top. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy this thermostat with complete confidence.

Using this Westinghouse freezer thermostat is easy. First, make sure your freezer is unplugged for safety. Then, carefully remove the old thermostat. Line up the new thermostat's mounting holes (which are 54mm apart) with the holes in your freezer. Connect the 4.8mm spade terminals correctly. Once it's installed, plug your freezer back in. As for maintenance, keep the thermostat clean. Wipe it gently with a dry cloth from time to time. If you notice any issues like inconsistent temperature control, check the connections first. And remember, always unplug the freezer before doing any maintenance. With proper use and care, this thermostat will serve you well for a long time.
