Westinghouse Asian Upright Freezer Thermostat - Part # 1063607, WPF33S-102-011T

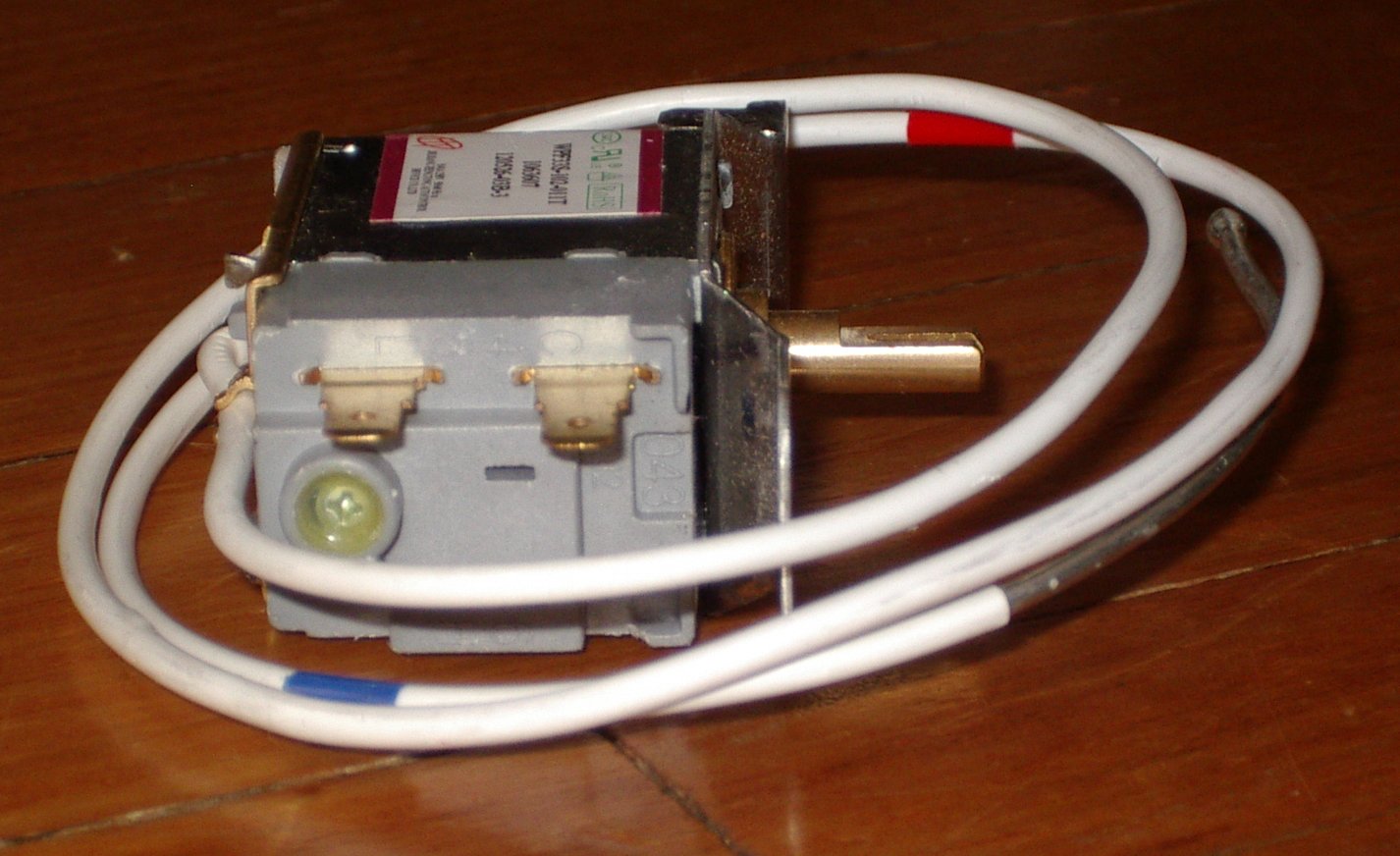

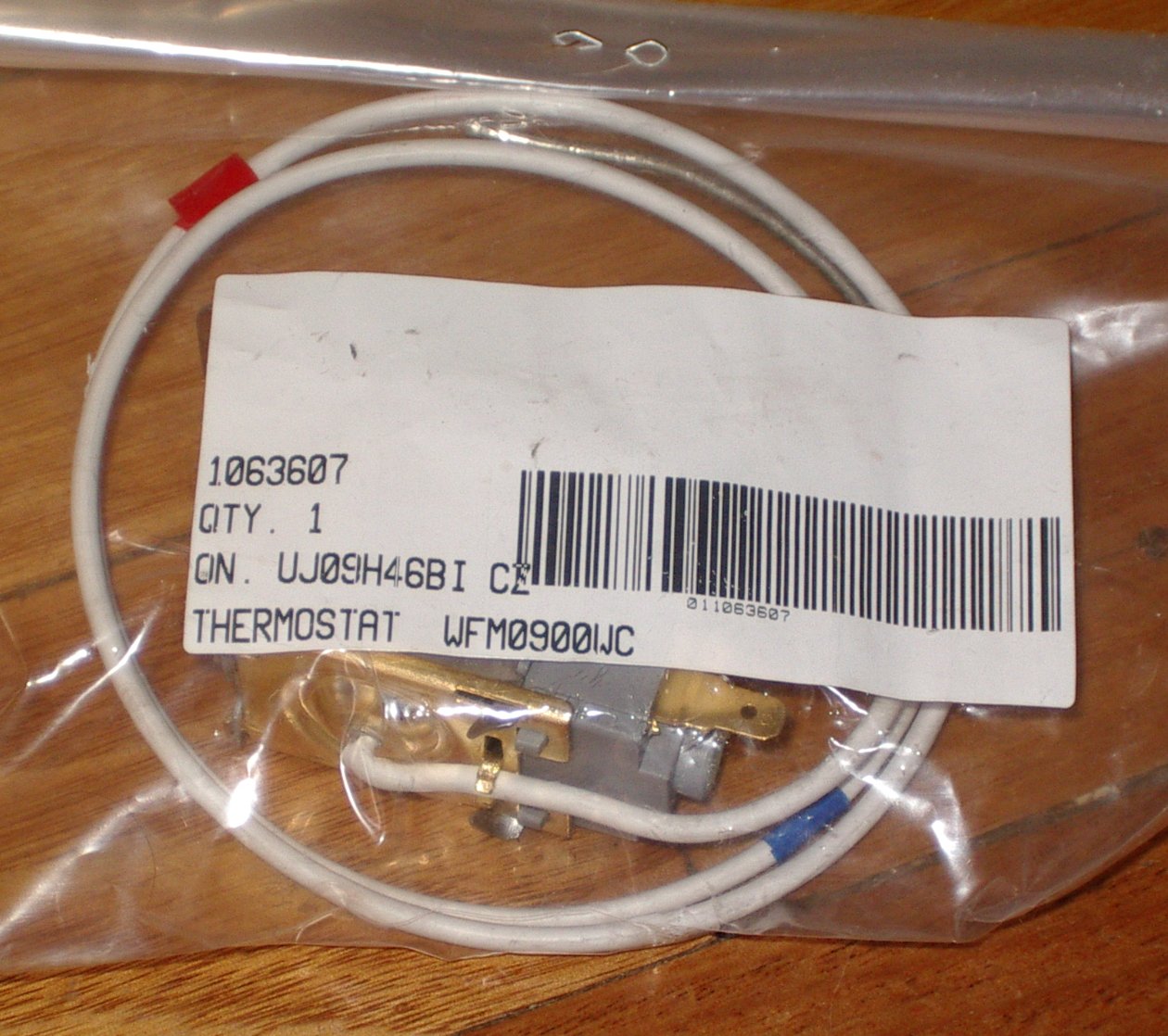

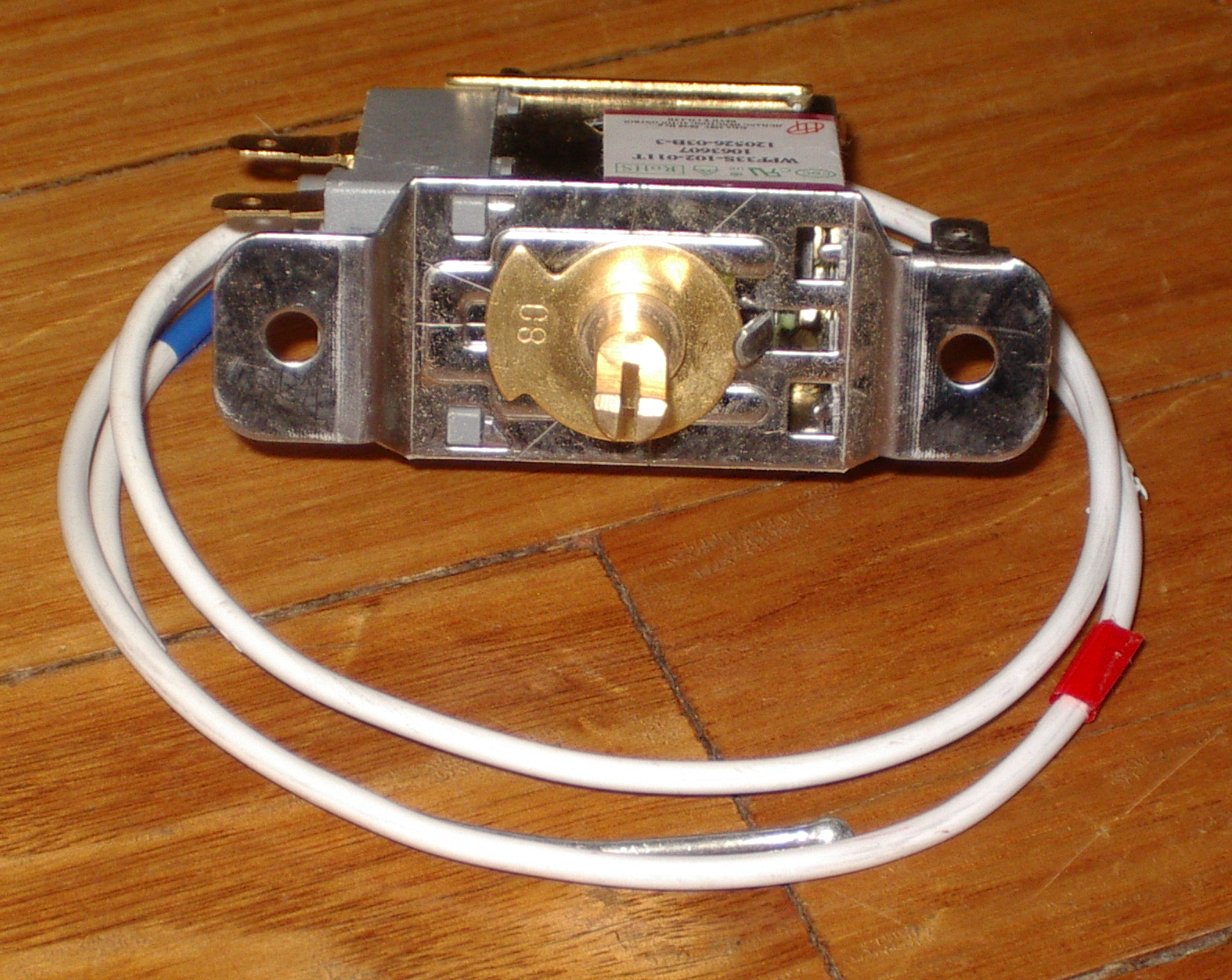

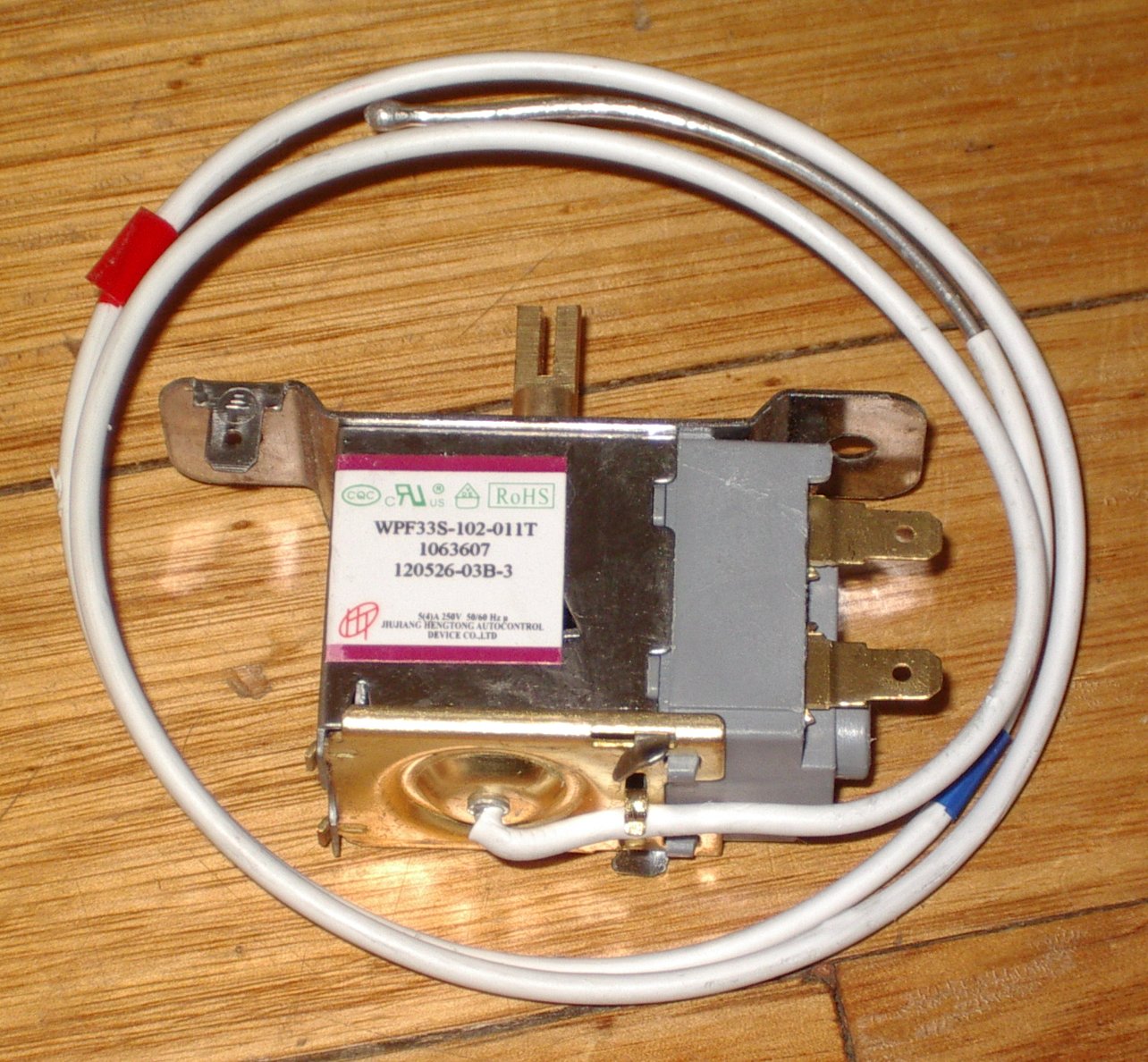

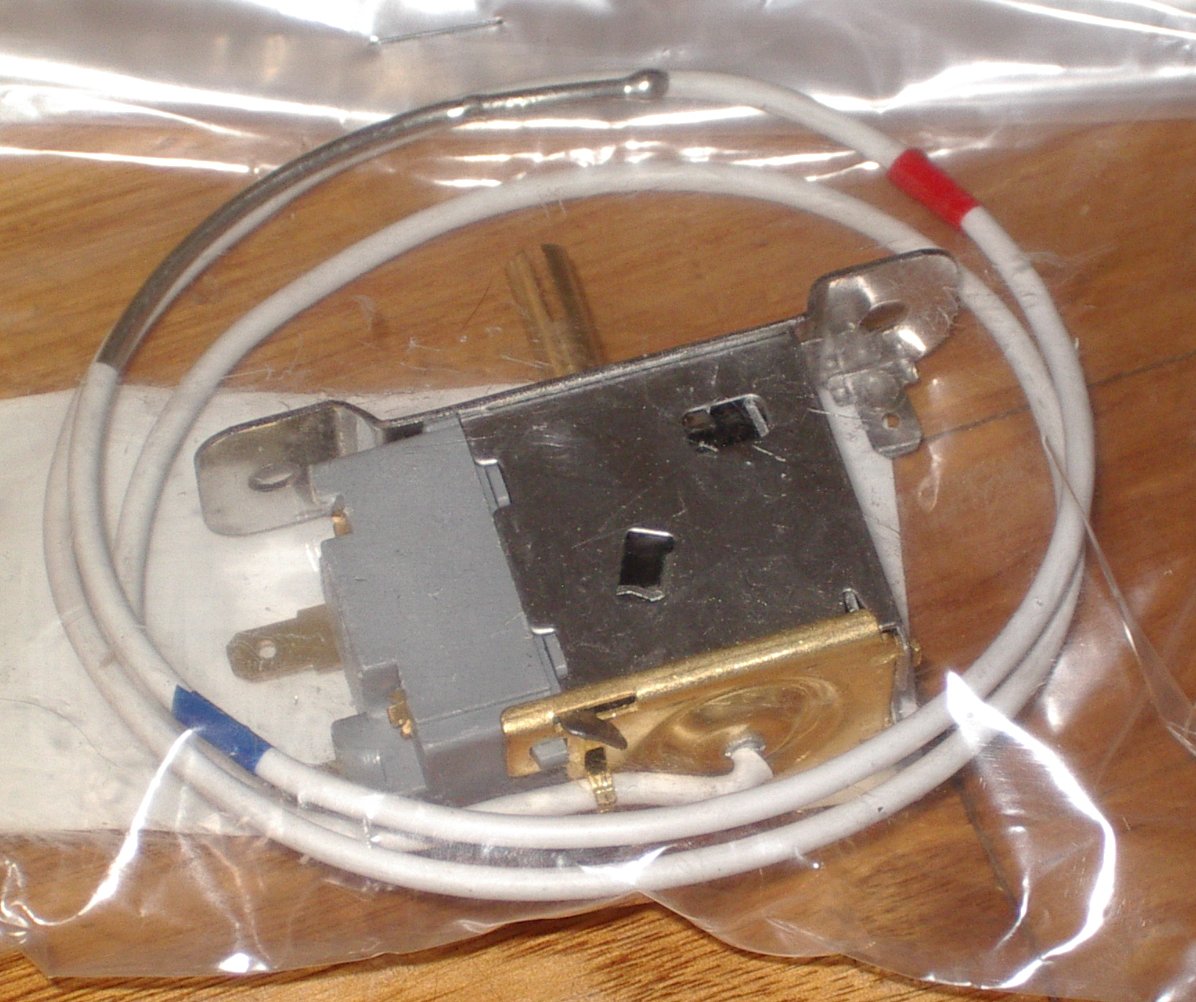

This is a standard Westinghouse upright freezer thermostat, part number 1063607. It can replace part numbers 14101229 and 1401229. The numbers on the thermostat include WPF33S-102-011T, 1063607, 120526 - 03B - 3 or WP33S - EX, 1093332, 120627 - 02B - 3. It's suitable for some Asian - made Westinghouse upright freezers such as models WFM0900WC and FR91T. The mounting holes are 54mm apart, the capillary is 700mm long, with 4.8mm spade terminals and a 5.7mm D - shape shaft. The thermostat capillary is located near the top. We've been supplying appliance parts to the trade and retail for over 25 years. You can buy with confidence.

Using this Westinghouse freezer thermostat is quite straightforward. First, make sure your freezer is unplugged. Then, locate the old thermostat and carefully remove it, taking note of how the wires are connected. Next, install the new thermostat in the same position, connecting the wires to the correct terminals. Once it's installed, plug the freezer back in. As for maintenance, keep the thermostat clean and free from dust. If you notice any issues like inconsistent temperatures, check the connections first. Also, be careful when handling the capillary as it's a delicate part. With proper use and maintenance, this thermostat will serve you well for a long time.
