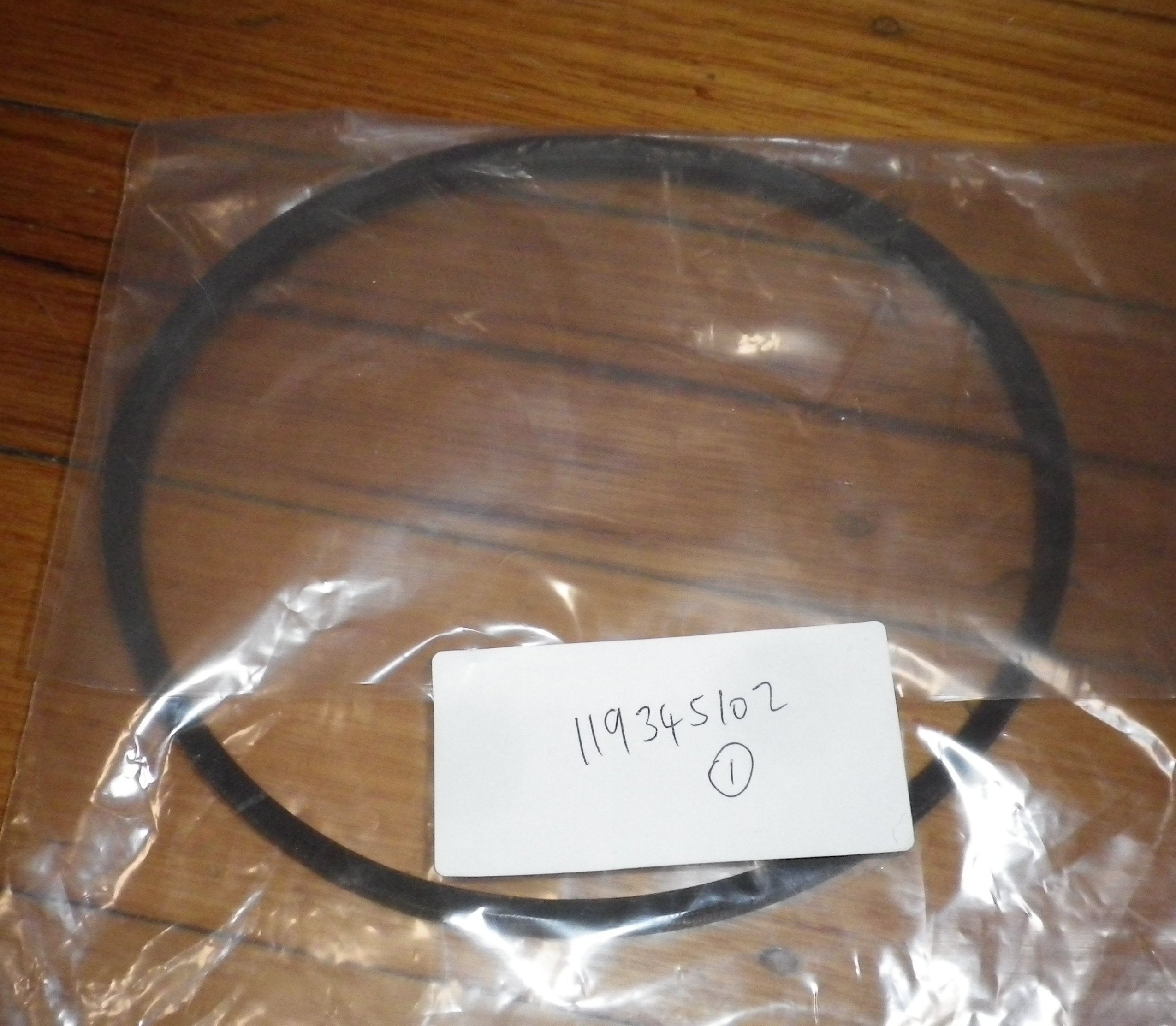

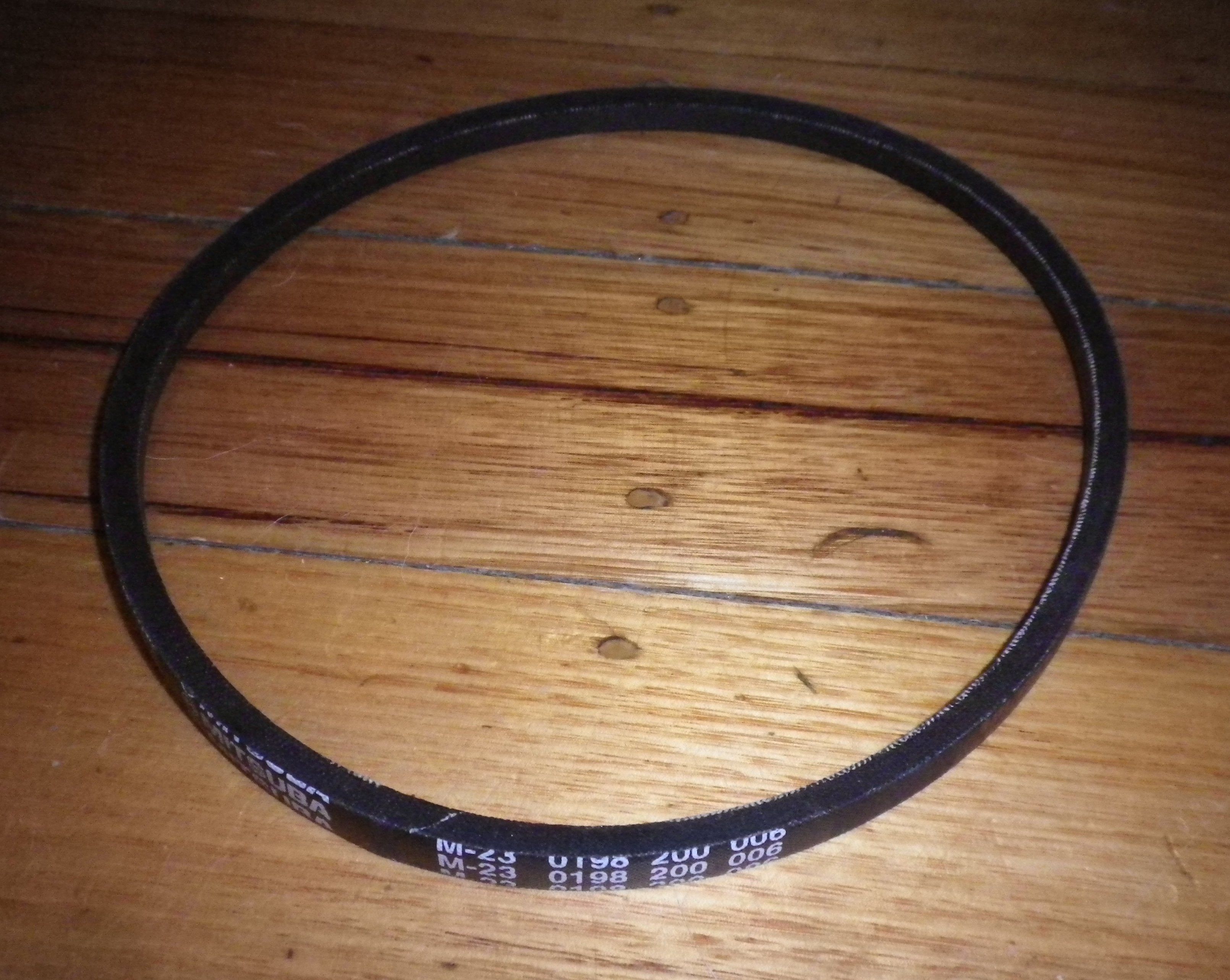

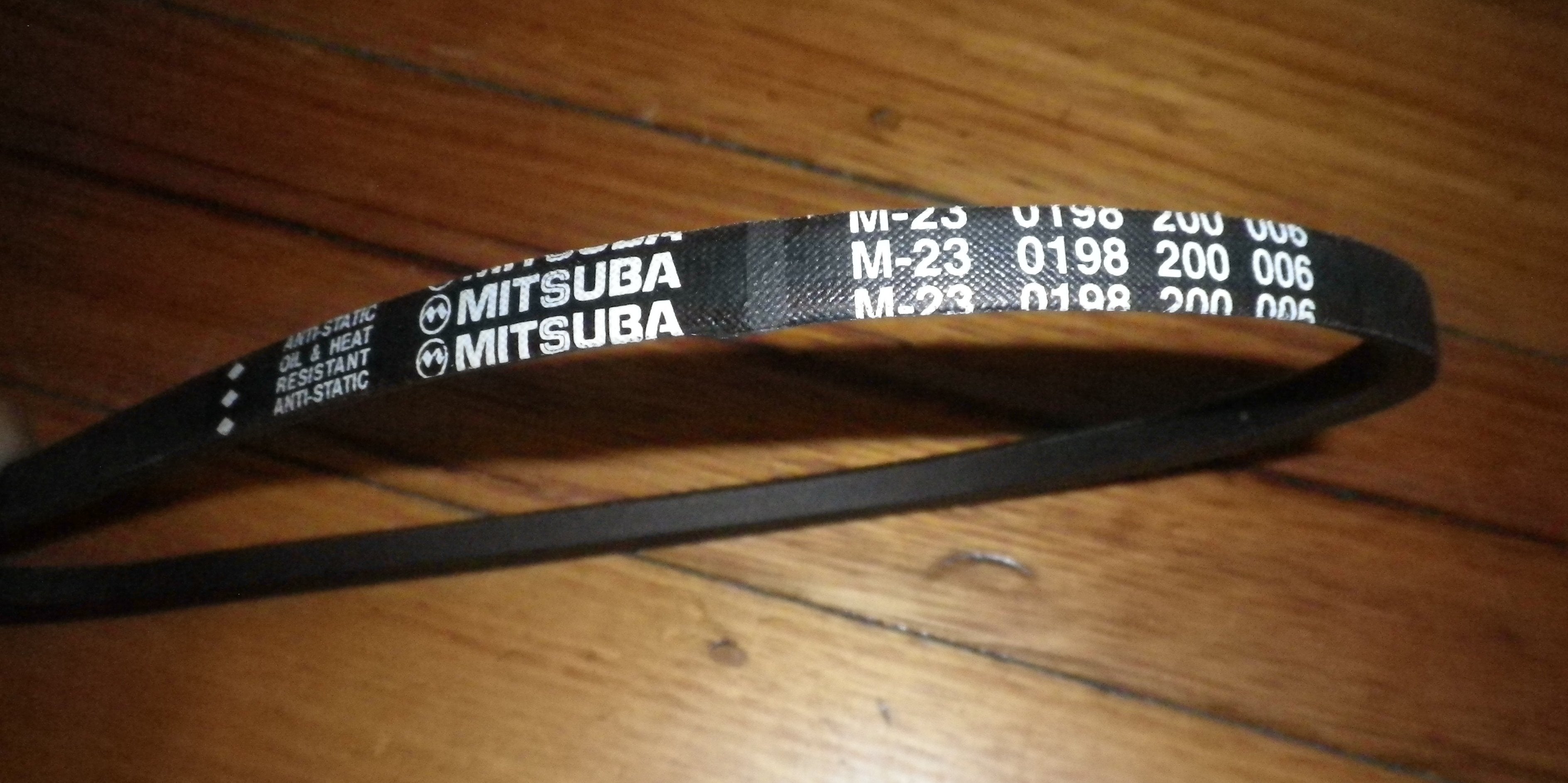

This main transmission drive belt is designed for some Simpson SWT Series top - loading washing machines. Part number is 119345102, Z590. The belt size is M22 (actual size M21.5). Belt markings show MITSUBA M23 0198 200 006, but it's not an M23 belt and not the same as part number 0198200006. It fits certain medium top - suspended automatic washing machines in the Simpson SWT series, like SWT5541, SWT6041, SWT6055LMWA, SWT6541, SWT6541M, and SWT7055LMWA. If you're not sure if this part suits your machine, contact us with the full model number and PNC code before buying. We've been supplying appliance parts for over 25 years, so you can buy with confidence.
Using this belt is easy. First, make sure your washing machine is turned off and unplugged. Then, locate the old belt and carefully remove it. Place the new Simpson SWT Series M22 belt in the same position as the old one. Make sure it's properly seated and aligned. When using your washing machine, don't overload it as this can put extra stress on the belt. Also, keep an eye on the belt during the first few cycles to ensure it's working well. For maintenance, check the belt regularly for signs of wear, like fraying or cracking. If you notice any damage, replace the belt right away. And remember, if you have any doubts about the belt's suitability for your machine, reach out to us with your full model number and PNC code.
