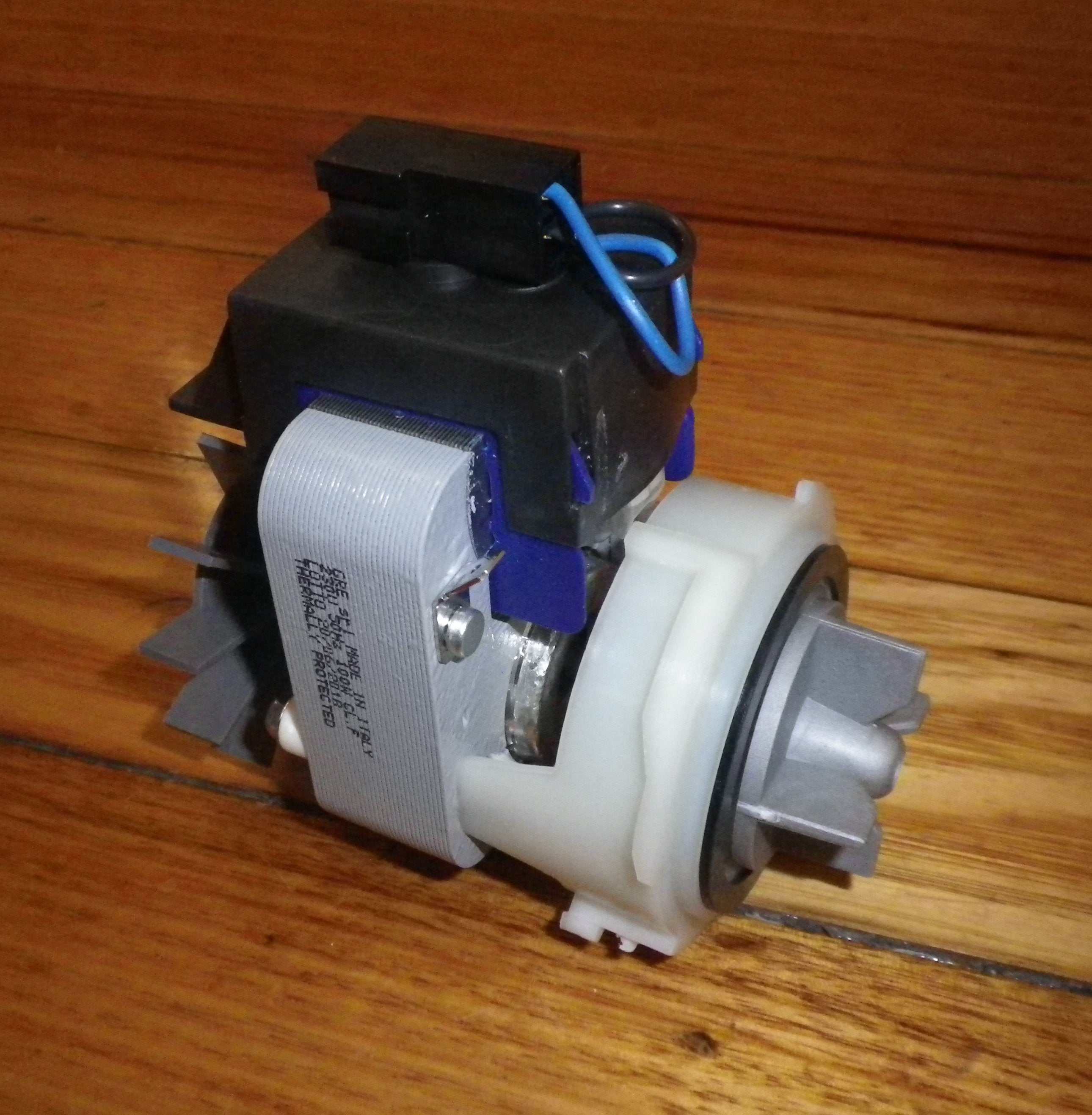

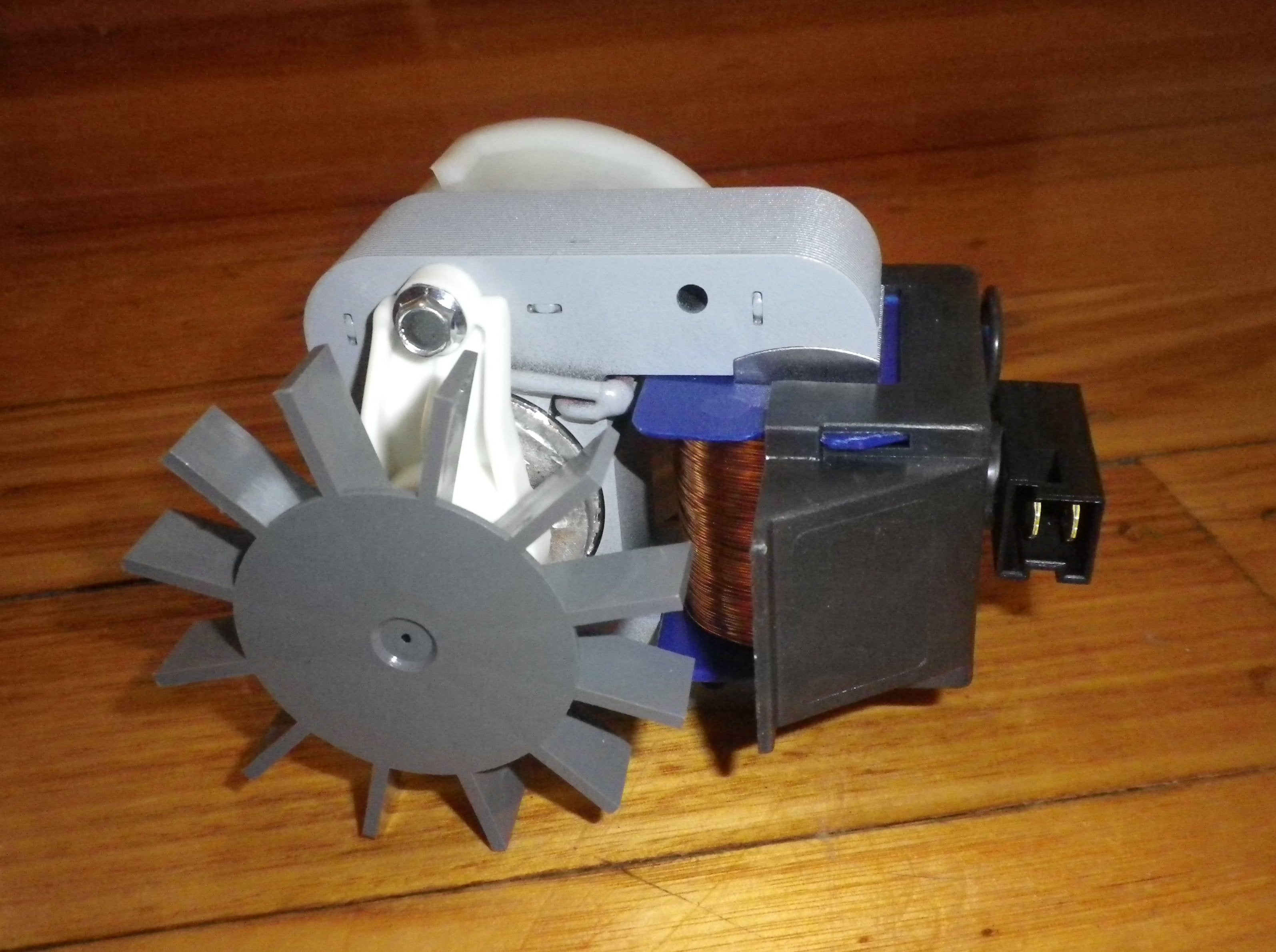

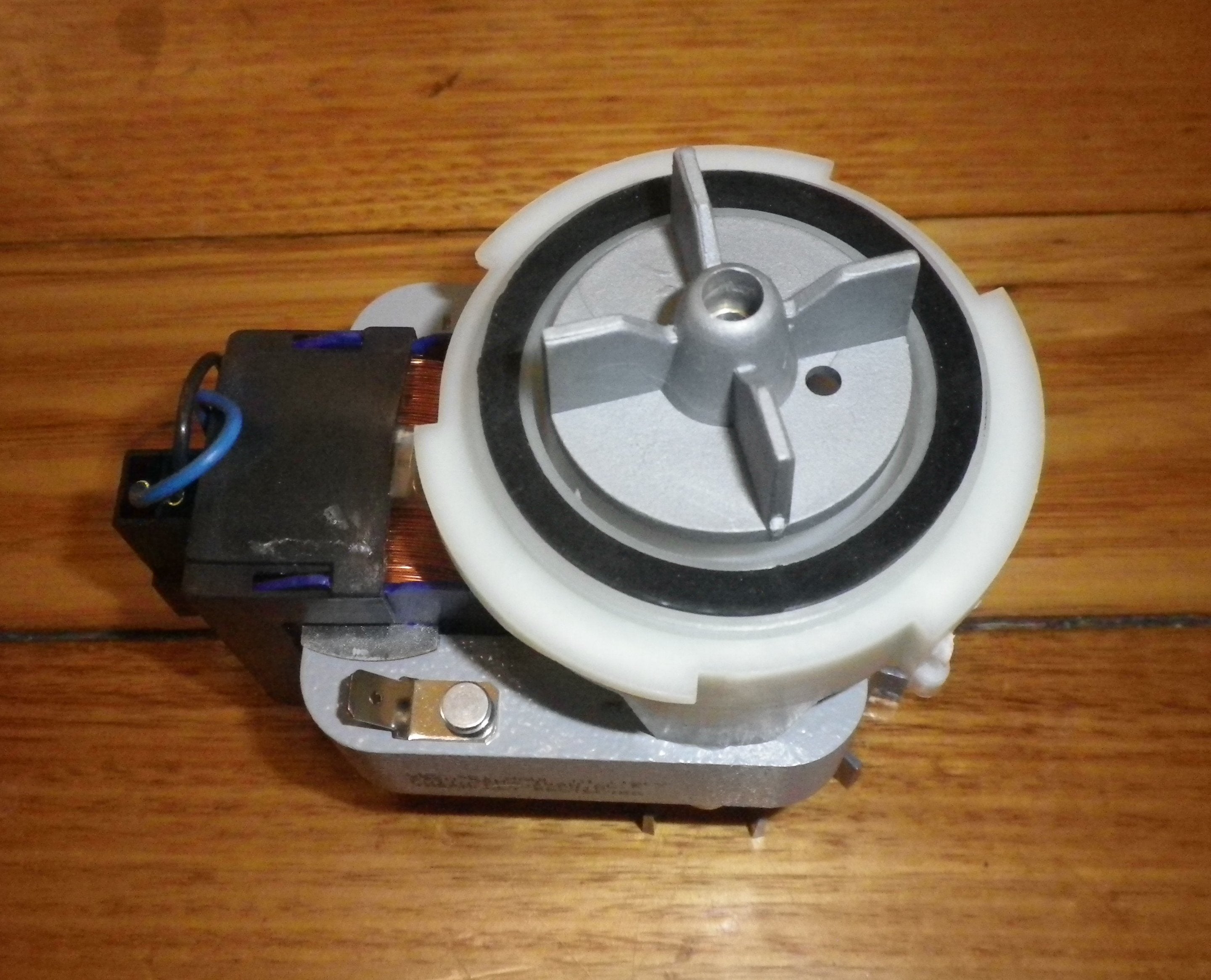

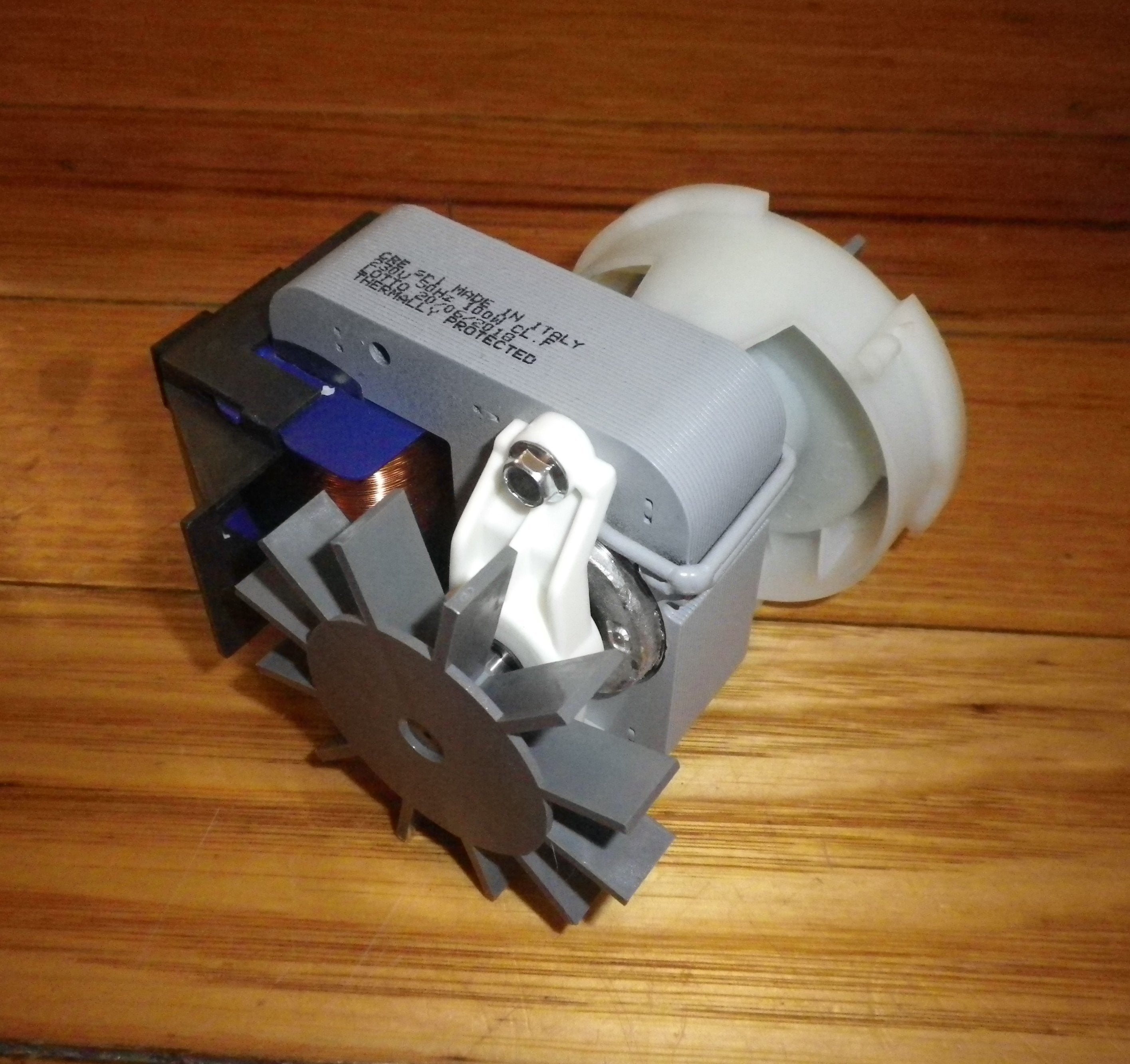

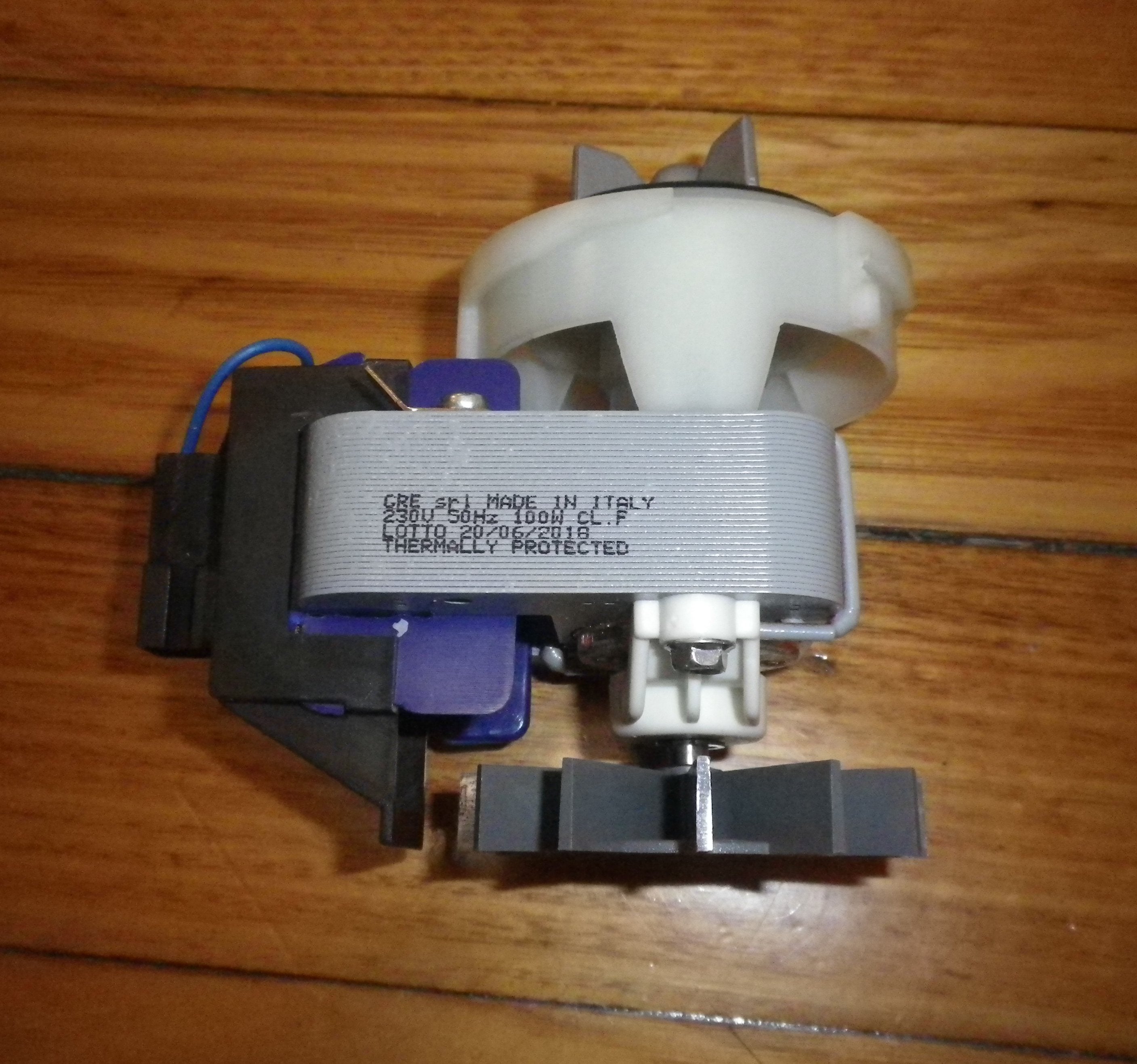

This is an aftermarket electric drain pump for Fisher & Paykel washing machines. The part numbers are FP005D and 1030207A. It can replace numerous genuine and other part numbers such as FP001, SM00 - 246NR, SD200, and many more. Some suppliers also refer to it as FP003, FP004, or FP005. This compatible electric pump is suitable for most early - model Fisher & Paykel washing machines, including the Smartdrive, Intuitive, Excellence, Pride AW, GW, LW, MW series from GW500 to GW712, and specific models like WA55T56G, WA65T60G, etc. However, it won't work with models starting with WL, Gentle Annie, or GW52U models. It features 6.4mm spade terminals. A worn or damaged pump can lead to motor control module damage and cause power issues in later - phase Smartdrive and Intuitive models. Long grey water hoses can put extra stress on the pump, leading to high current draw and error codes. Using a siphon break or pumping into a gravity - fed container is recommended when using a grey water hose. This pump is easy to install and comes with a full guarantee. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with confidence.
Using this Fisher & Paykel compatible electric drain pump is straightforward. First, make sure your washing machine model is suitable. This pump works for most early - model F&P machines but not those starting with WL, Gentle Annie, or GW52U models. When installing, connect it using the 6.4mm spade terminals. As for maintenance, listen out for any rattling, screeching sounds, or intermittent starting problems. If you notice these issues, it's a good idea to replace the pump as a worn or damaged pump can cause motor control module damage. When using a grey water hose, be aware that it can put extra stress on the pump. To avoid issues like high current draw and error codes, use a siphon break or pump the grey water into a container where it can run out under gravity. This pump is fully guaranteed, so if you have any problems, you're covered. And with our 25 - year experience in supplying appliance parts, you can trust in its quality.
