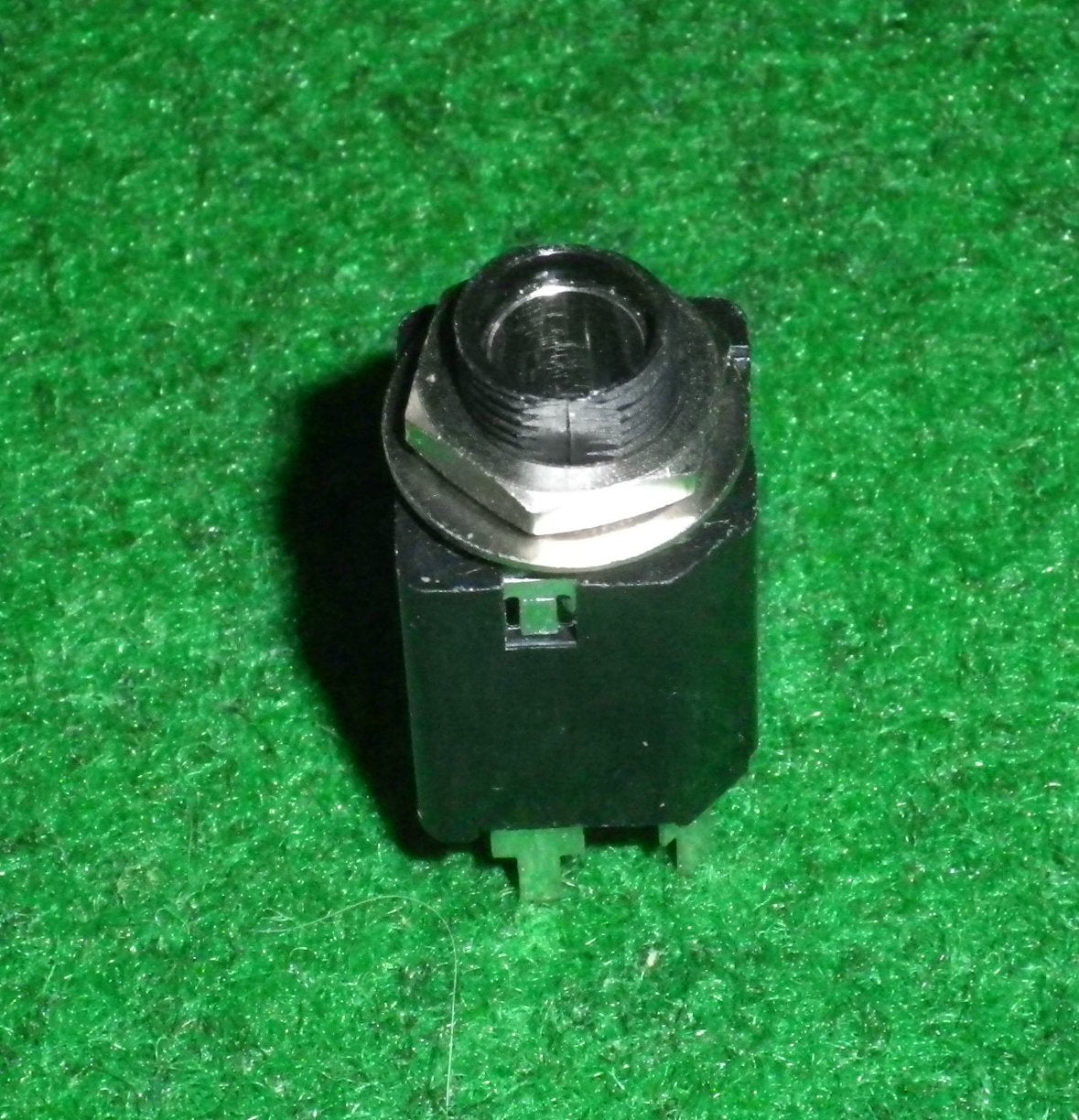

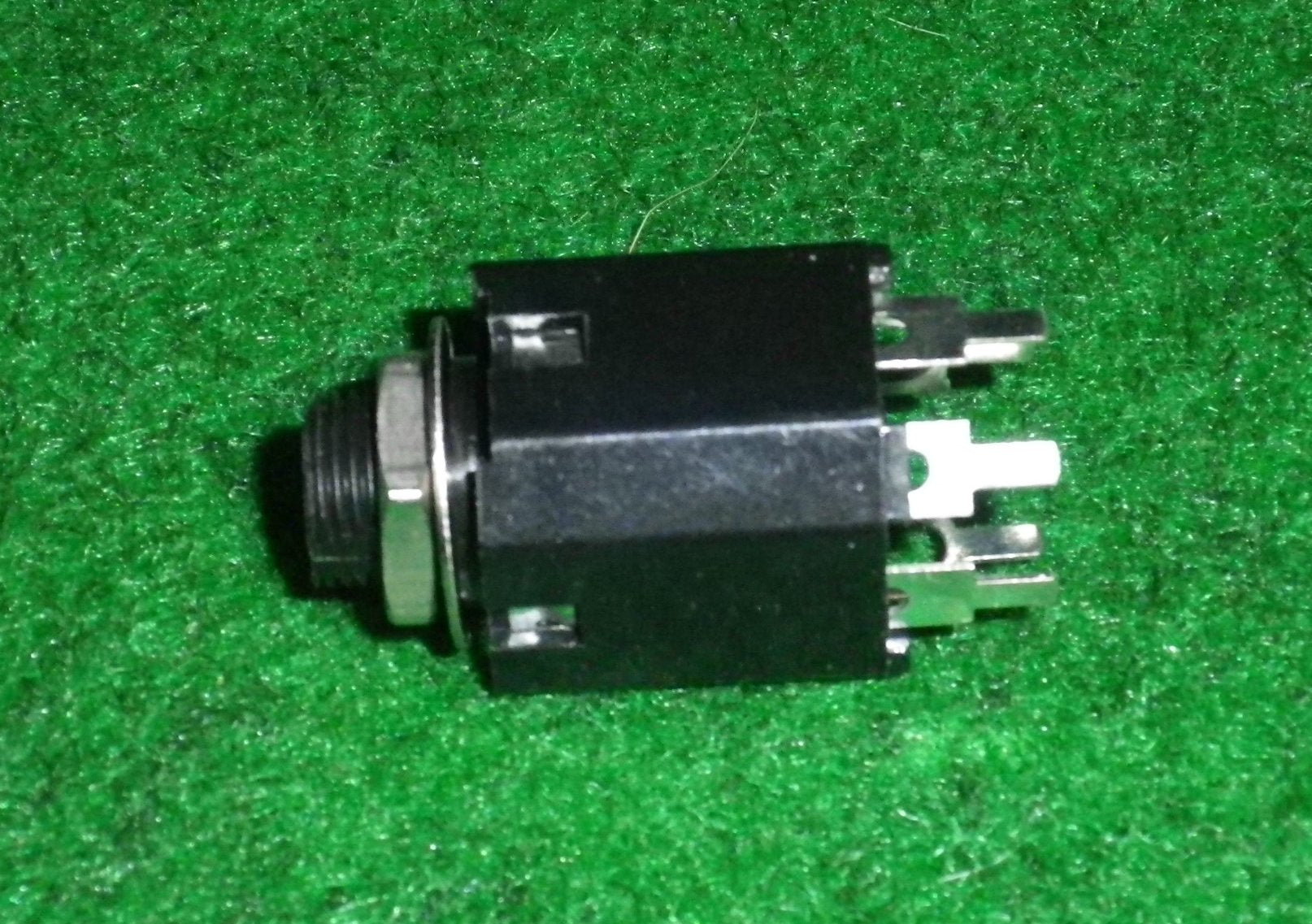

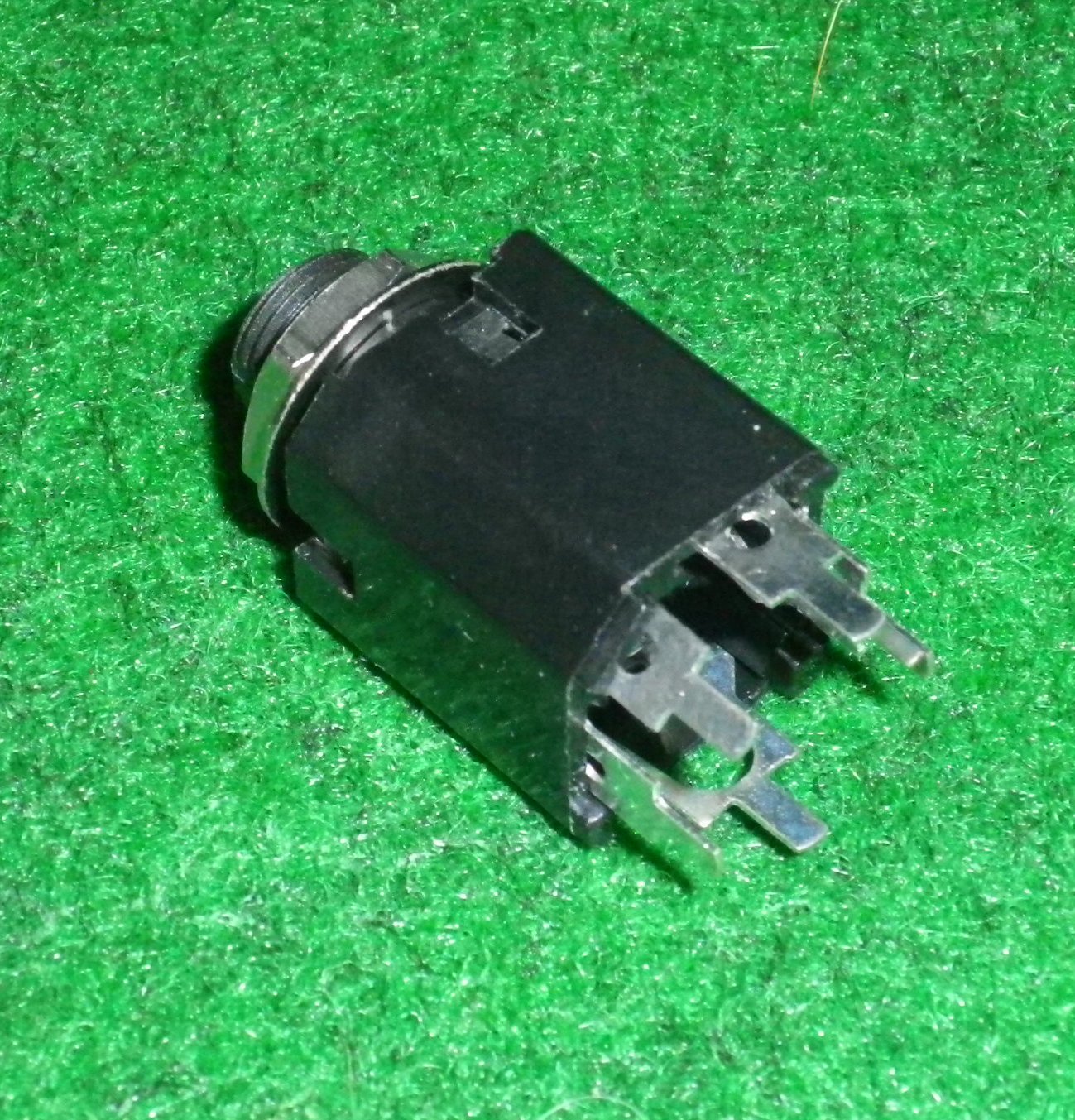

Switchcraft presents a top - notch 6.3mm stereo phone socket designed for PCB mounting. Part numbers include N114BPCX and 502 - N114BPCX. This professional - grade socket offers normally closed switching on both ring and tip connections and comes with insulated mounting. It features 5 PCB tag connections. Ideal for headphone jacks, it's also great for balanced and switched signal inputs and outputs in sound mixers, guitar amplifiers, etc. You can view the datasheet here. With over 25 years of supplying appliance parts to both trade and retail, you can buy with confidence.
Using this Switchcraft 6.3mm stereo phone socket is easy. First, identify the 5 PCB tag connections and carefully connect them to your device according to the wiring diagram. You can use it for headphone jacks in your audio setup or for signal inputs and outputs in sound mixers and guitar amplifiers. When using, make sure to handle the socket gently to avoid any damage to the internal connections. For maintenance, keep it clean and dry. If there's any dust or debris, you can use a soft, dry cloth to wipe it. Avoid exposing it to extreme temperatures or humidity as this may affect its performance. And always refer to the datasheet for more detailed information if you have any questions.
