Product Detail

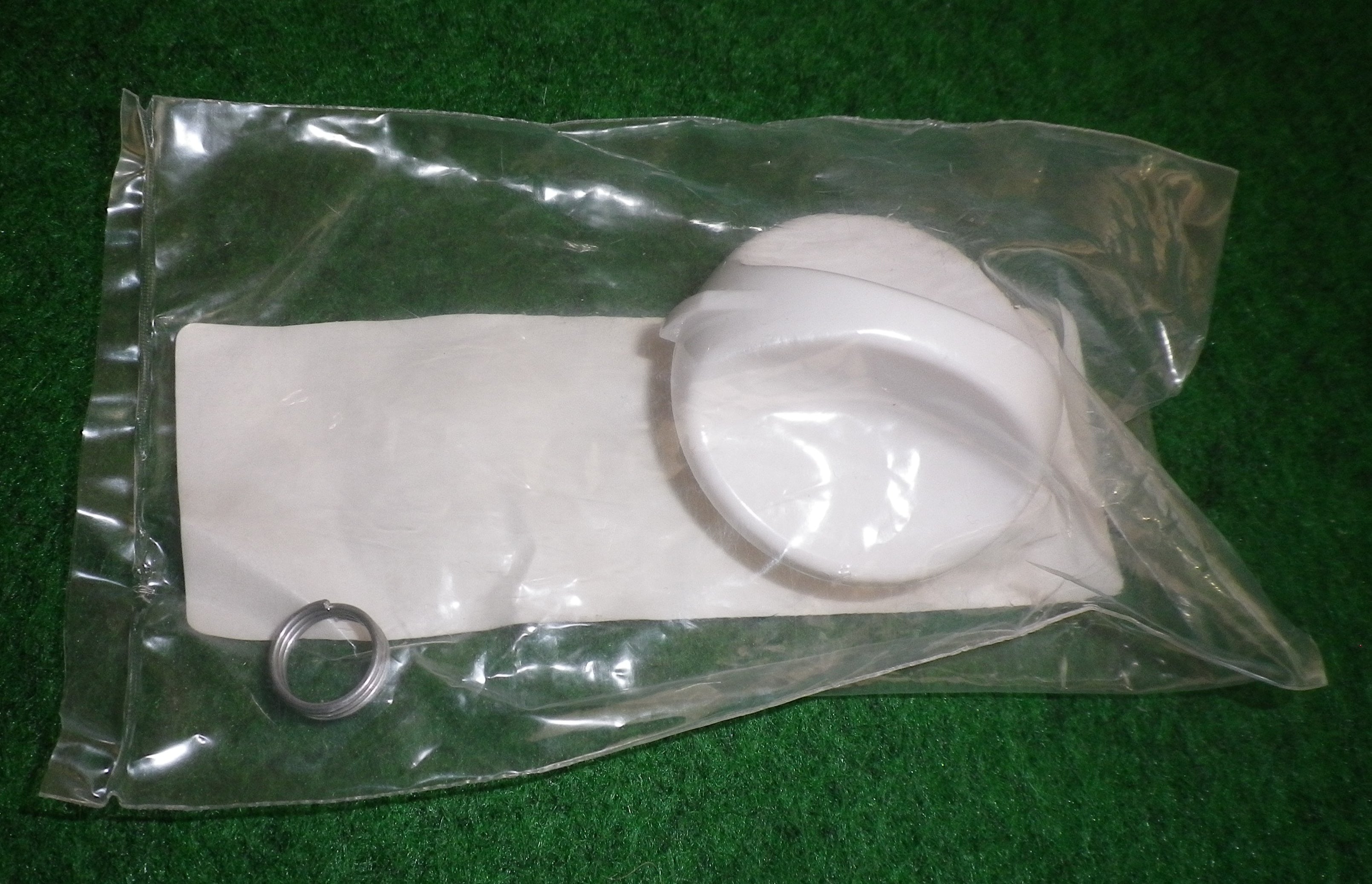

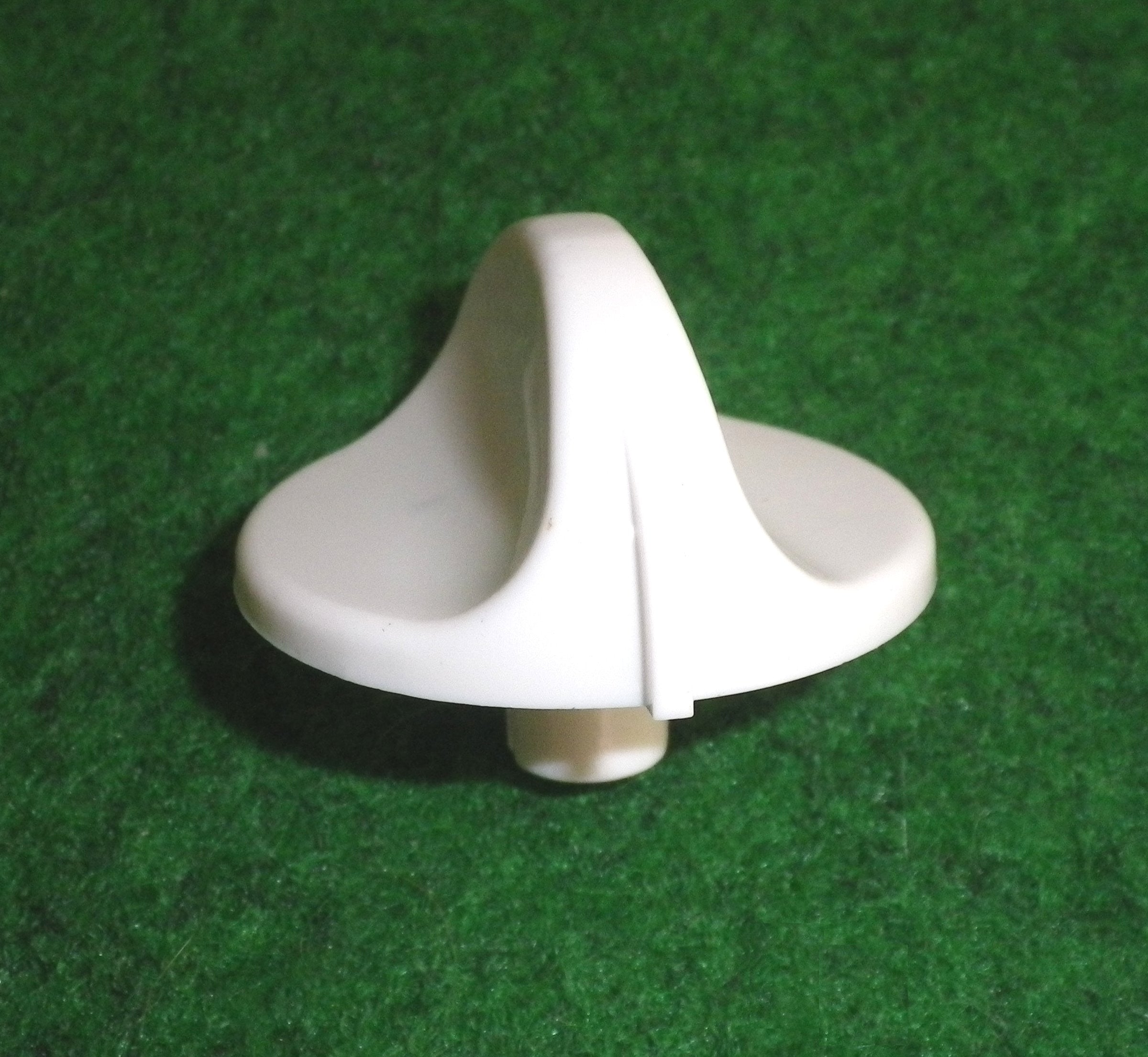

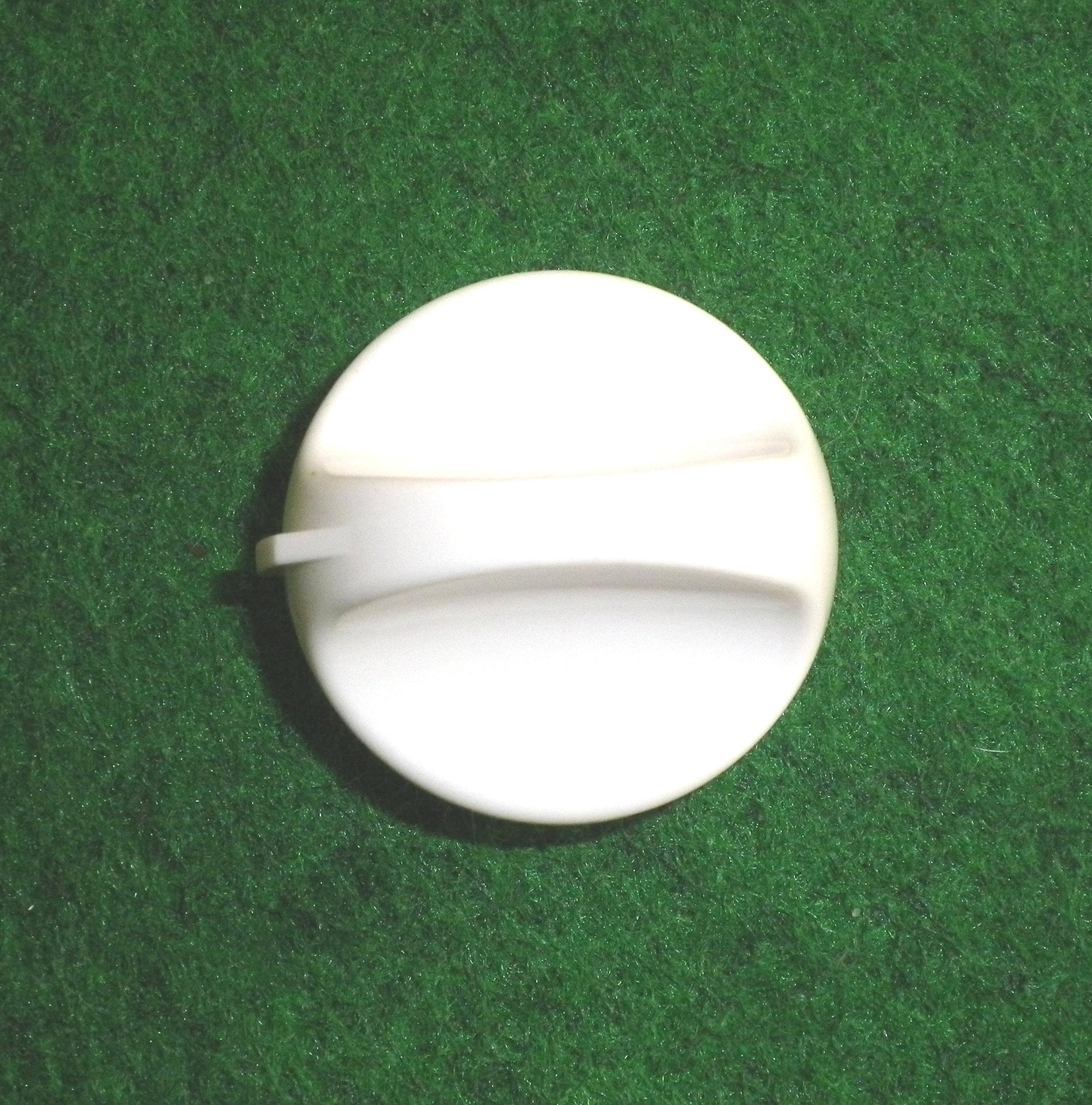

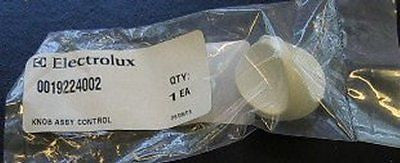

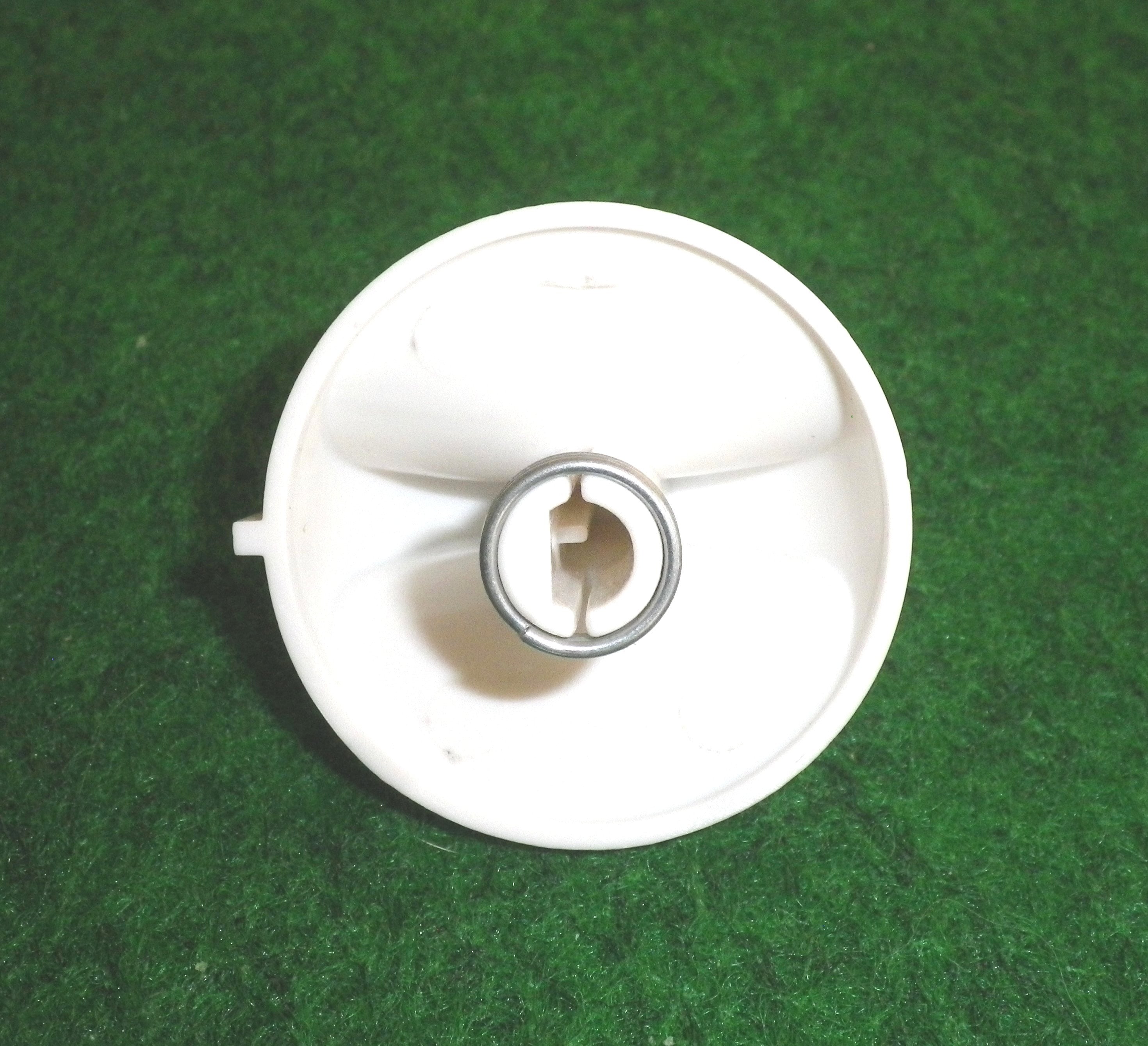

This is a white plastic control knob designed for Simpson Esprit and Concorde washing machines. Part number is 0019224002, and it replaces part number 0019224003. It's used on many early Simpson large and medium top - suspended automatic washing machines to control water level and fill temperature. The knob has a 40mm diameter and 23mm height, with a D - shape shaft. The flat side of the shaft is on the same side as the pointer. It comes with a white body and a pointer. Note that the spring clip on the shaft is not included. It was sold separately before but is no longer available, so you'll need to reuse the clip from your old knob. Early versions had a blue pointer, but the current one is all white. This part is prone to breakage. It's easy to install and fully guaranteed. It fits Simpson models 36P450J, 36P541J, 36P550J, 22P650J, 22S650J, 22S741J, 22S750J, Esprit 450, Esprit 550, Esprit 650, Esprit 750, Concorde 541, and Concorde 741. If you're not sure if it fits your machine, contact us with your full machine model number before buying. We've been supplying appliance parts for over 25 years, so you can buy with confidence.
Using this control knob is simple. Just remove the old knob from your Simpson Esprit or Concorde washing machine. Make sure to keep the spring clip from the old one as the new knob doesn't come with it. Then, attach the new knob to the D - shape shaft on your machine. When using it, turn the knob gently to adjust the water level and fill temperature according to your laundry needs. As for maintenance, keep the knob clean by wiping it with a soft, damp cloth regularly. Avoid using harsh chemicals that could damage the plastic. If you notice any signs of wear or if the knob starts to malfunction, check the connection to the shaft. If you're still having issues, contact us for further assistance. Also, always double - check the model number of your washing machine to ensure this knob is the right fit for your appliance.
