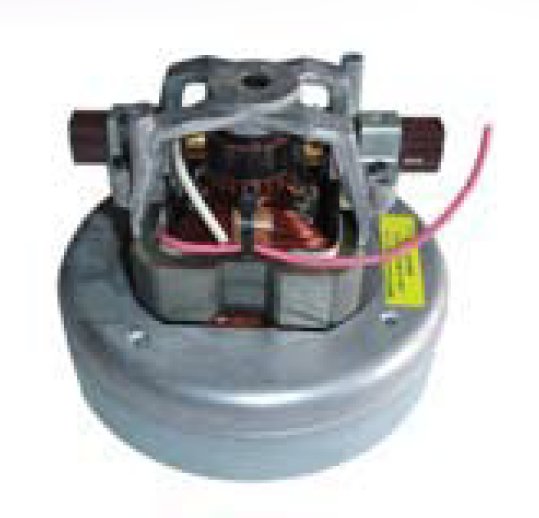

Shanghai Ametek 850W (Peak 1000W) Single - Stage Flow - Through Vacuum Motor Fan Unit

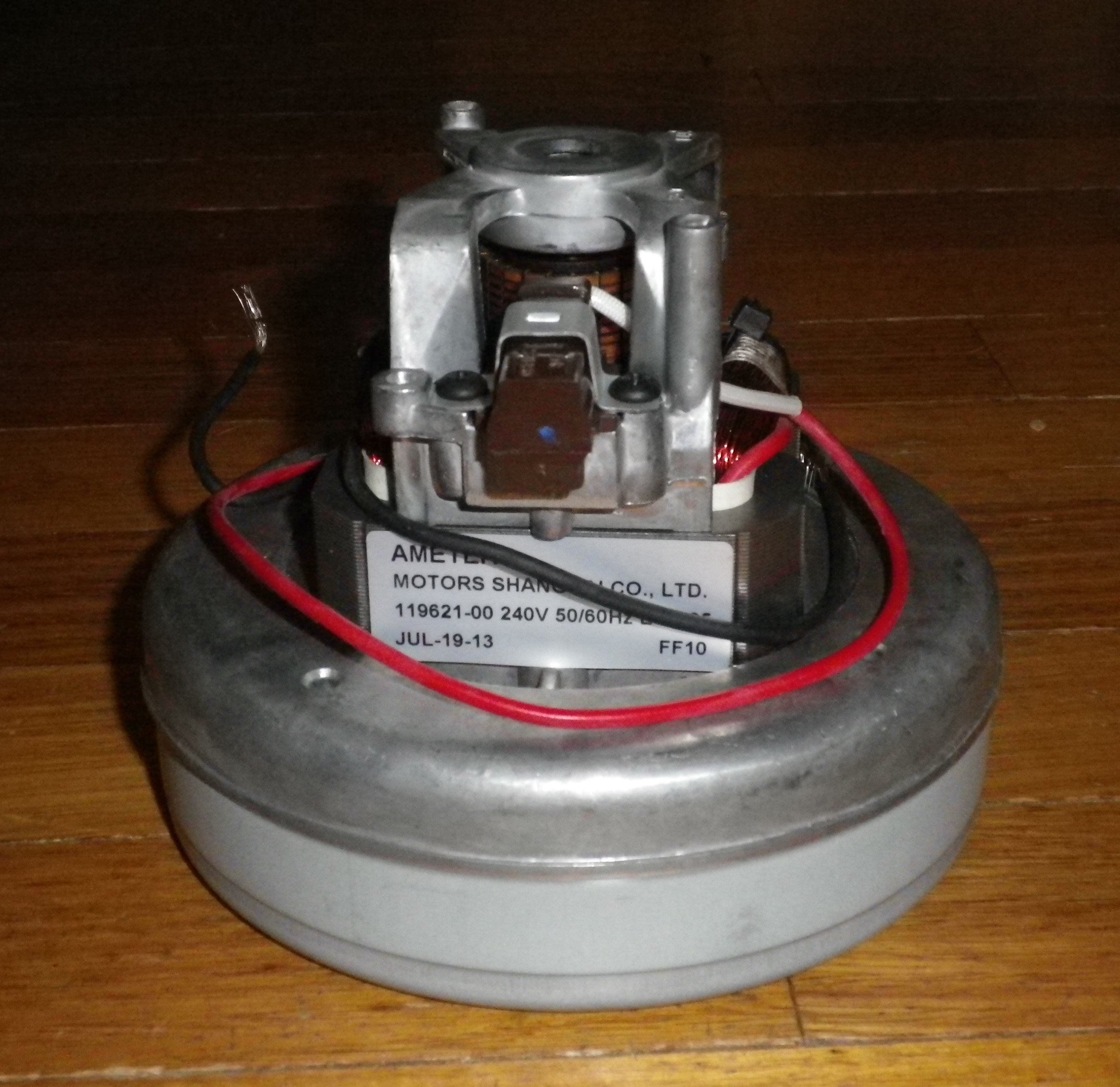

Part No. 119621, M014. Operating at 240VAC 50/60Hz with 850 Watts of power. It's a single - stage flow - through design, perfect for various ducted vacuum cleaner systems, backpack vacuums, and other commercial vacuum cleaners. Made in China by Ametek. The motor has a total height of 115mm, a fan height of 45mm, and a diameter of 145mm. You can view the full specifications right here. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with complete confidence.
Using this Shanghai Ametek vacuum motor is easy. First, make sure it's properly installed in your vacuum cleaner following the manufacturer's instructions. Plug it into a 240VAC power source with a 50/60Hz frequency. When using, turn on your vacuum cleaner as you normally would, and the motor will start working. As for maintenance, keep the motor clean from dust and debris regularly. Check the connections to ensure they're secure. If you notice any strange noises or a drop in performance, stop using it immediately and check for possible issues. This motor is designed to last, but with proper care, it will serve you well for a long time.
