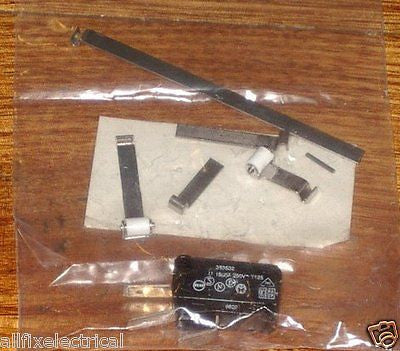

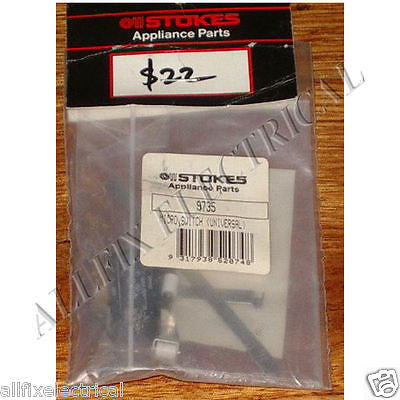

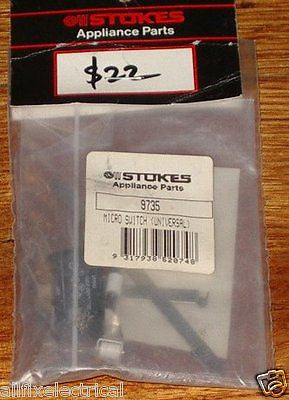

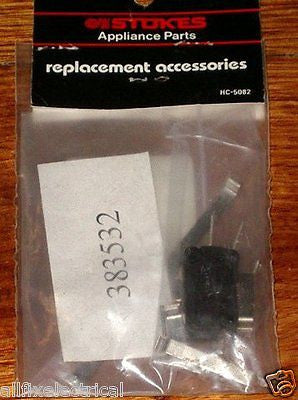

This all-purpose Single Pole Double Throw (SPDT) microswitch kit, part number 9735 and 383532, is a versatile solution for various applications. It comes with a universal standard 15-amp, 240-volt microswitch featuring 6.4mm spade terminals and five different lever attachments. The levers can be easily attached 15mm behind the switch button on the top of the switch. With lever widths of 4.5mm and lengths of 85mm, 30mm, 18mm, 30mm with a roller, and 18mm with a roller, it offers flexibility to meet different needs. The switch has a maximum rating of 16 amps at 240VAC, 12 amps for resistive loads, and 4 amps for inductive loads, and it requires heavy actuator pressure. This kit is a great replacement for many different special function microswitches. We've been supplying high - quality appliance parts to both the trade and retail sectors for over 25 years, so you can buy with confidence.
Using this microswitch kit is easy. First, identify the location where you need to install the microswitch. Make sure to attach the levers 15mm behind the switch button on the top of the switch according to your requirements. Connect the 6.4mm spade terminals properly to ensure a good electrical connection. When using the switch, be aware that it has a heavy actuator pressure, so you need to apply enough force. As for maintenance, keep the microswitch clean and dry. Check the connections regularly to make sure they are tight. If you notice any signs of wear or damage, such as loose levers or faulty electrical connections, replace the parts as soon as possible. Also, make sure not to exceed the maximum ratings of 16 amps at 240VAC, 12 amps for resistive loads, and 4 amps for inductive loads to avoid damaging the switch.
