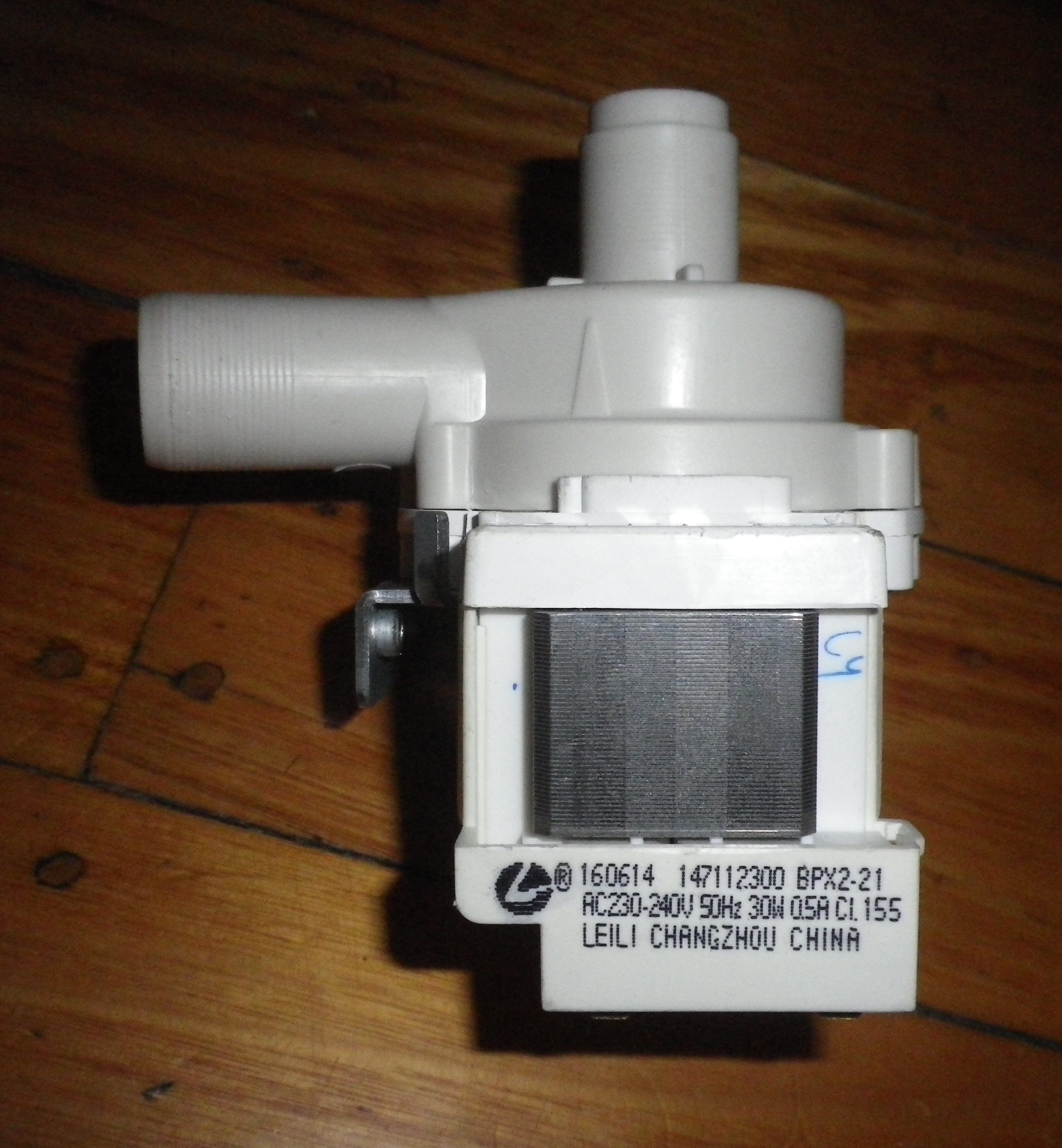

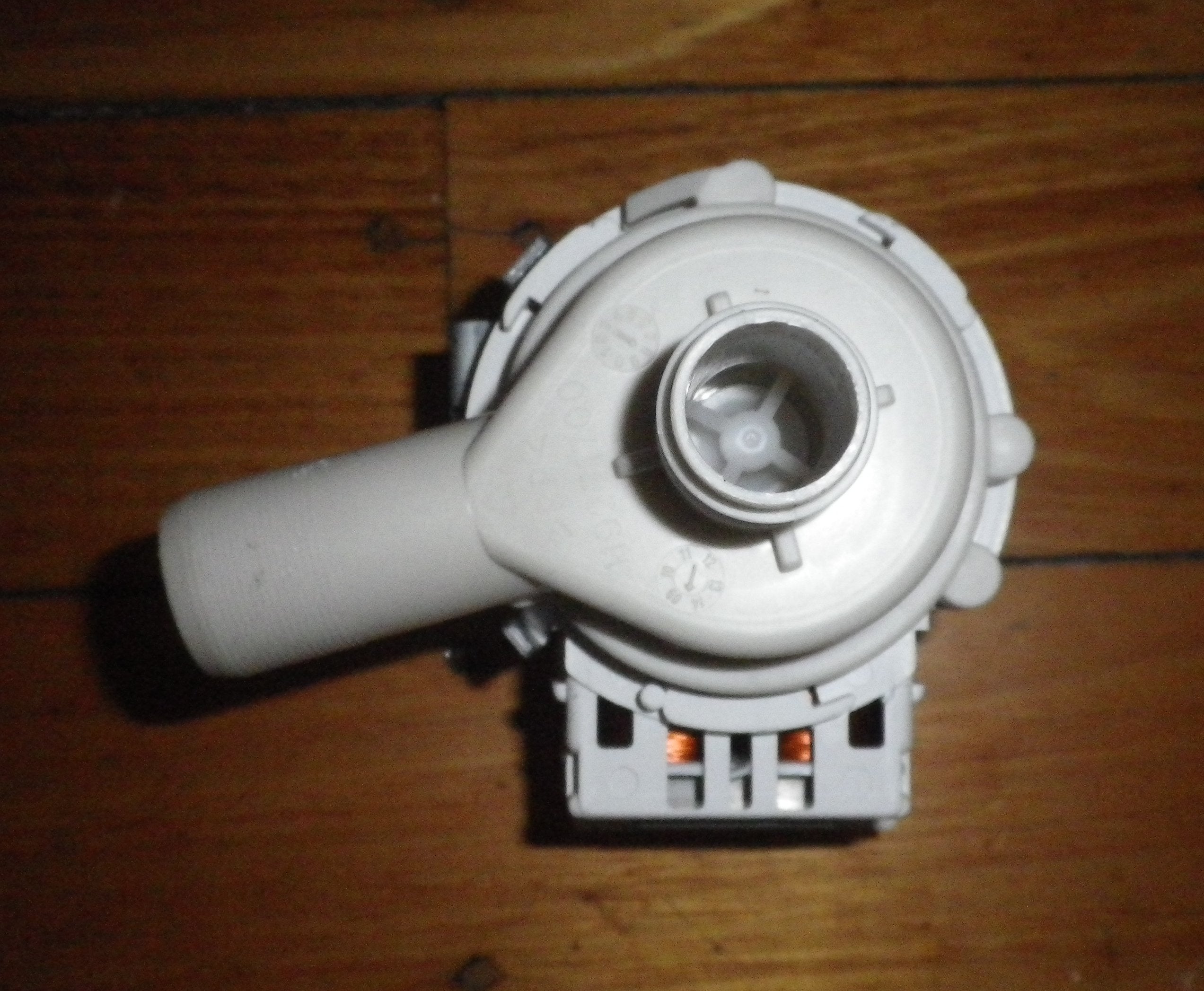

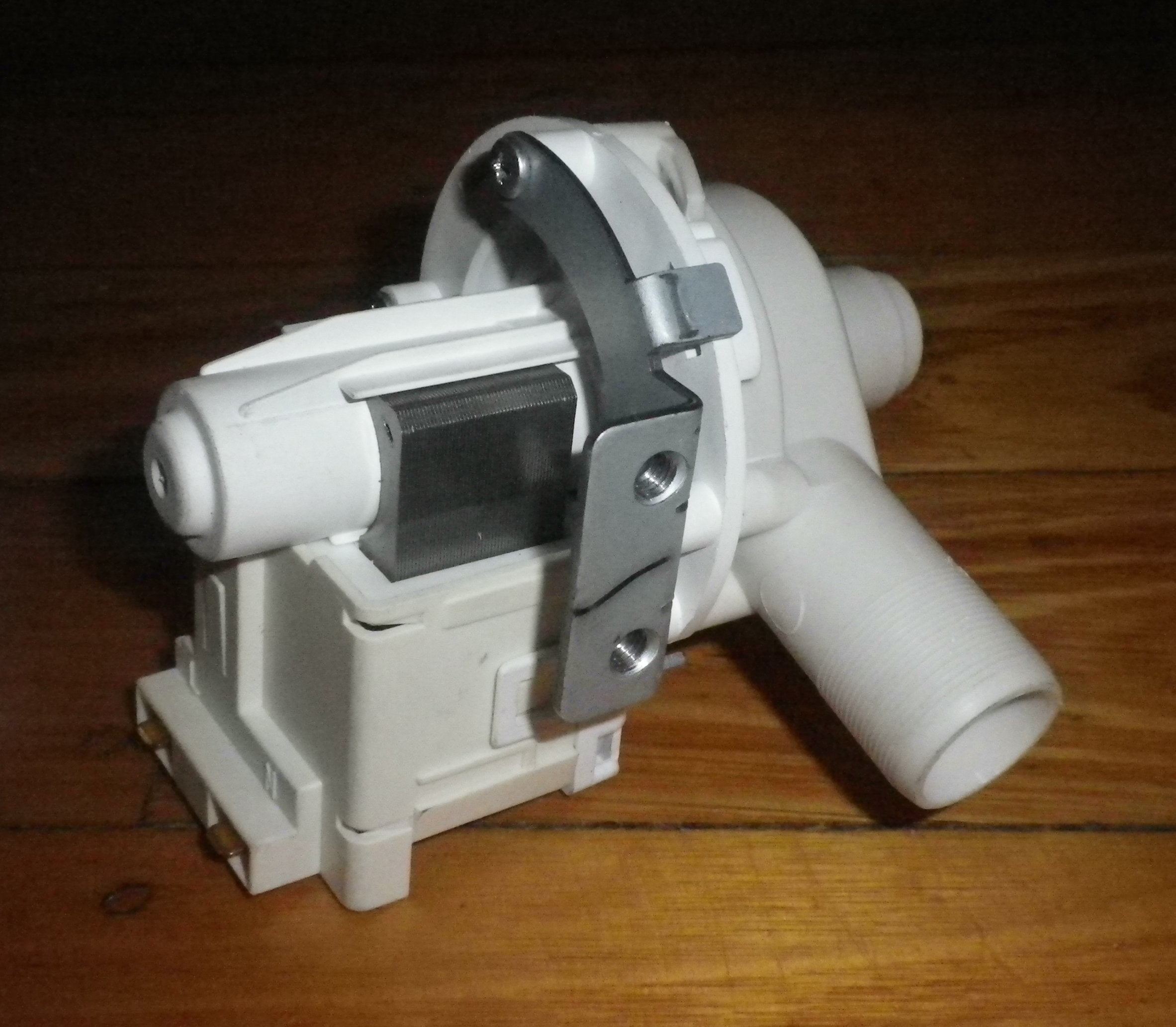

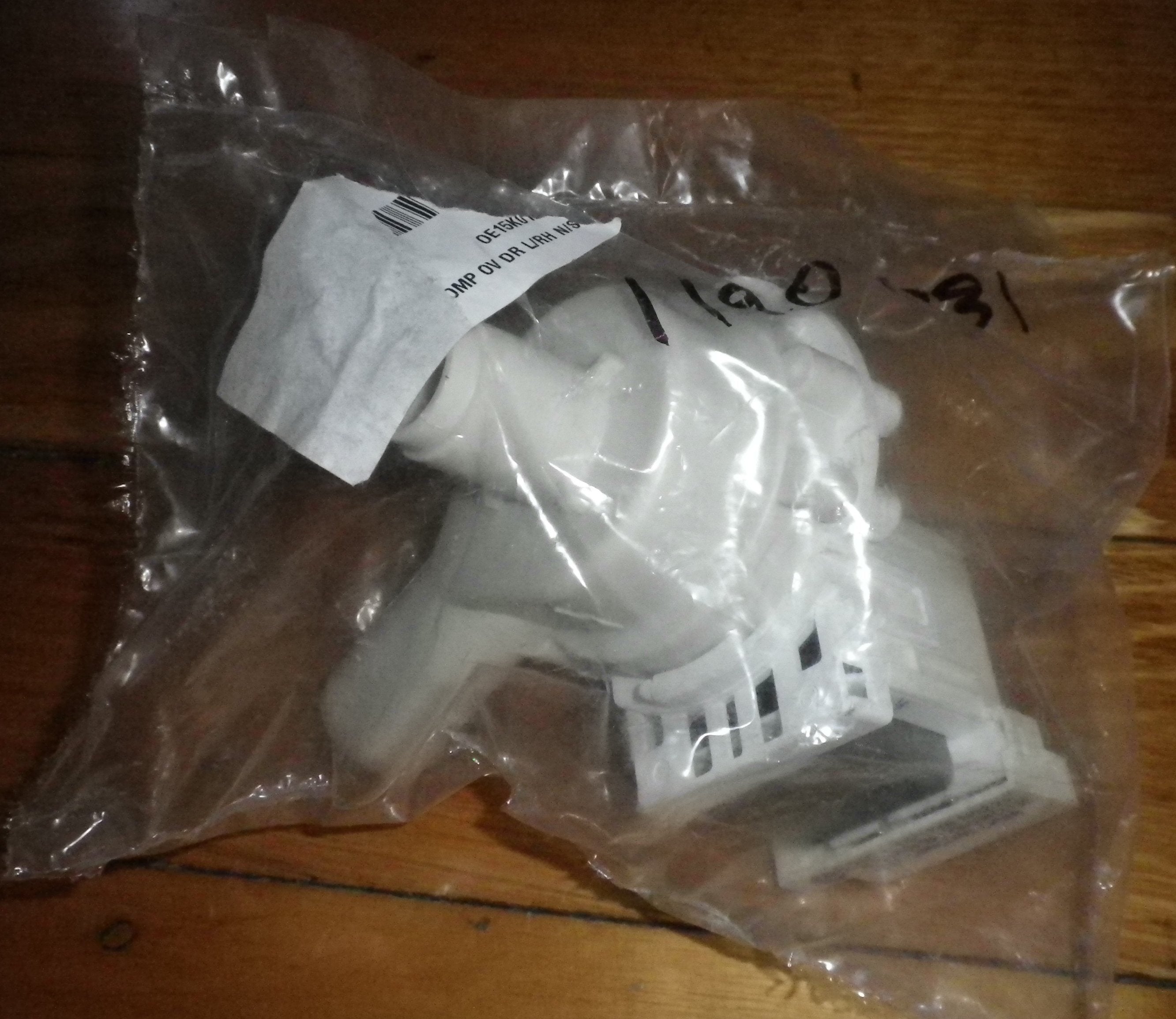

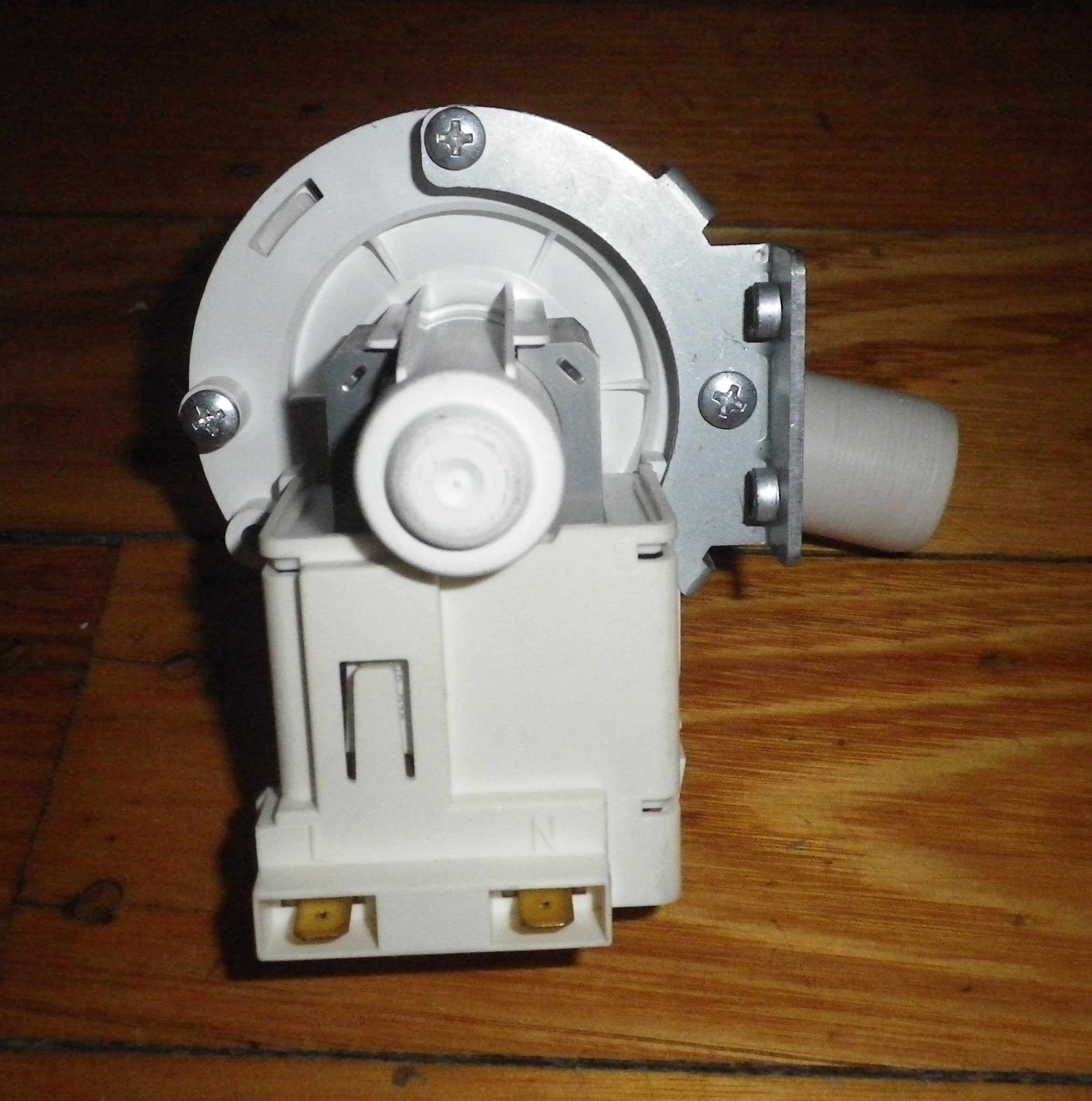

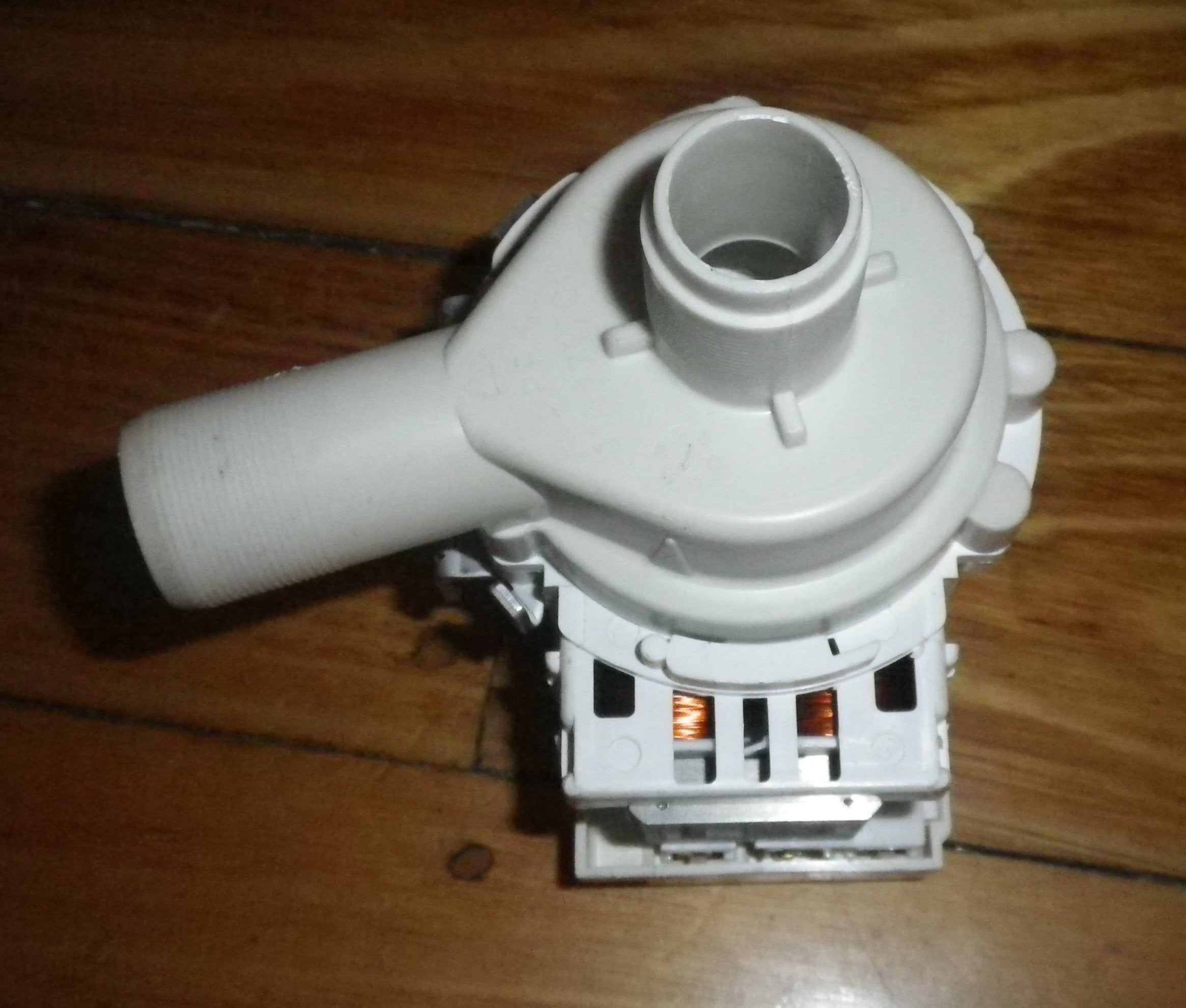

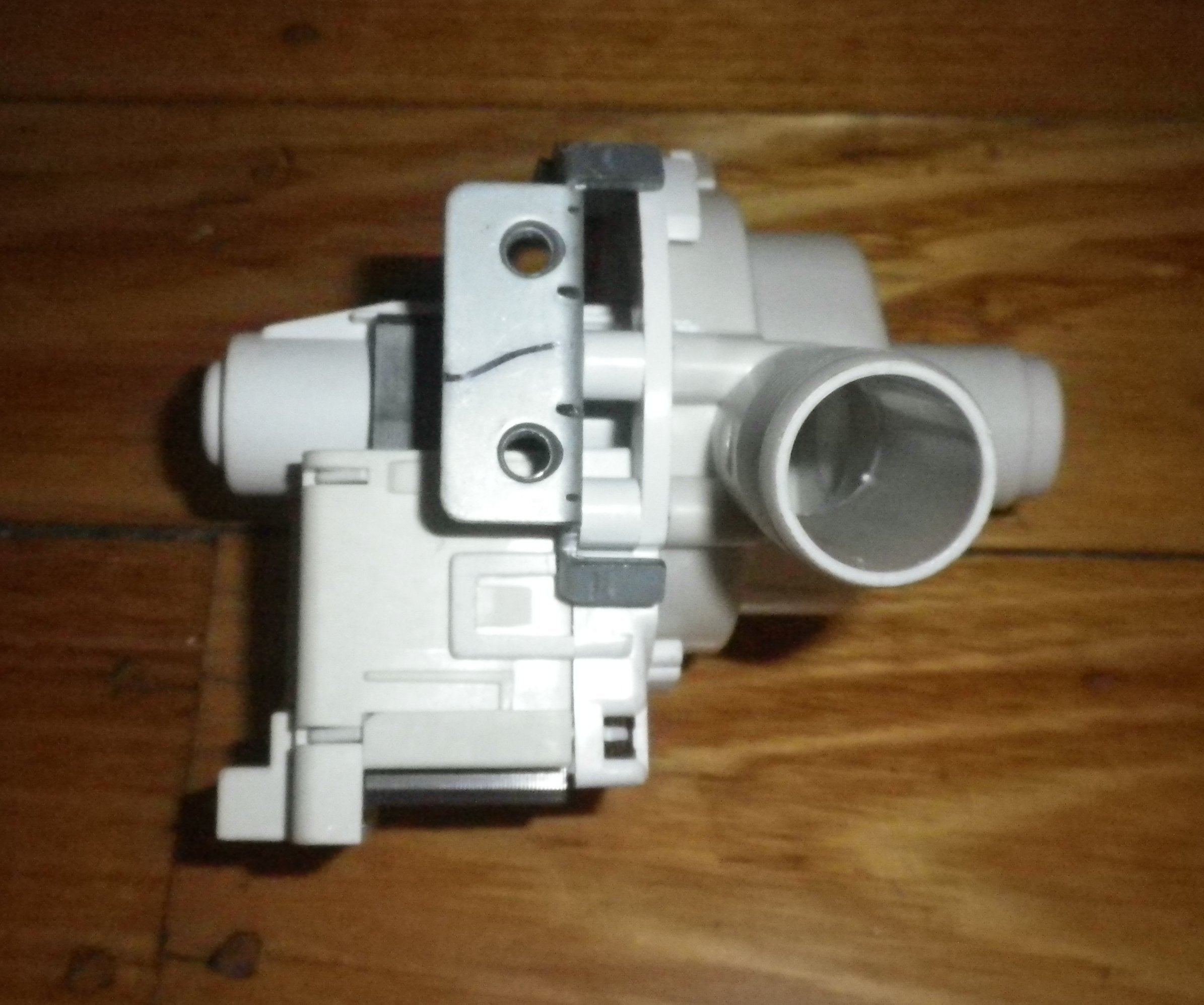

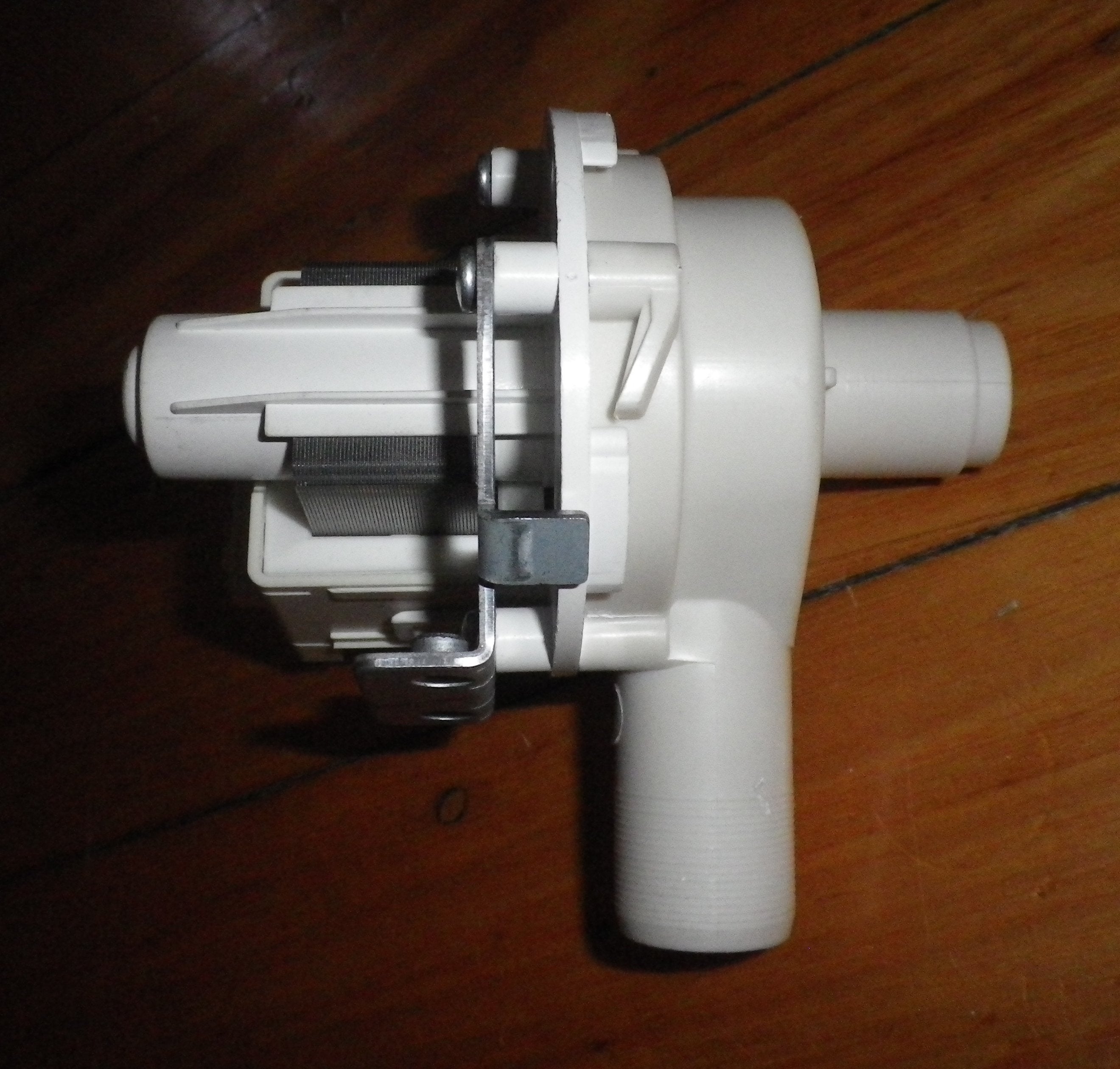

This is a genuine magnetic pump motor designed for late model Simpson and Westinghouse washing machines. The part number is 119095731, and now 0499200049 is also in use. It's a Leili Changzhou Type BPX2 - 21, suitable for models like 160614, 141210, 147112300. This motor replaces part numbers A05535101, 147112300, 132732020, 119095700. It fits some late - model washing machines, including many SWF series front - loaders and SWT top - loaders, as well as Westinghouse WWT series models. The mounting hole spacing is 25mm, with an inlet diameter of 23.6mm and an outlet diameter of 24.4mm. It features 6.4mm spade terminals, operates at 230 - 240VAC, 30Watt, 0.5A, 50Hz. It's easy to install and comes with a full guarantee. If you're not sure if this part fits your machine, contact us with your full model number and PNC number before buying. We've been supplying appliance parts for over 25 years, so you can buy with confidence.
Using this magnetic pump motor is straightforward. First, make sure your washing machine is turned off and unplugged from the power source. Then, remove the old pump motor carefully, following the instructions in your washing machine's manual. Align the new motor with the mounting holes, which have a 25mm spacing, and secure it properly. Connect the wires to the 6.4mm spade terminals. Plug your washing machine back in and turn it on to test the new motor. When it comes to maintenance, keep the motor clean and free from dust and debris. Check the wires regularly for any signs of wear or damage. If you notice any unusual noises or performance issues during operation, stop using the machine immediately and contact us. And remember, if you're ever unsure about the suitability of this part for your washing machine, give us a call with your full model number and PNC number before making a purchase.
