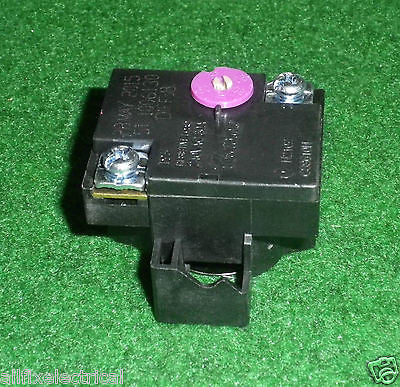

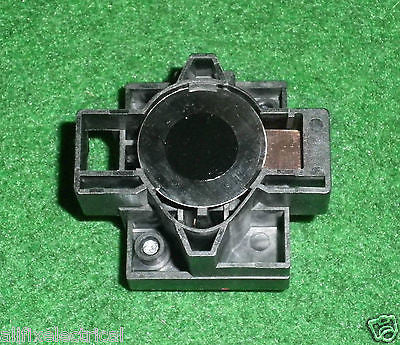

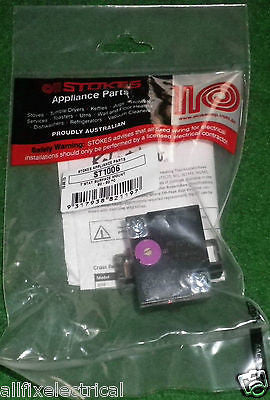

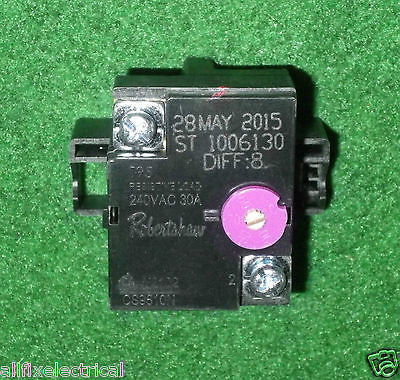

Surface Mount Hot Water Thermostat & Cutout 60-90 Degrees C - Part # ST1006130

This is a universal electric hot - water surface - mount thermostat. Part numbers include ST1006130 and ST1006. It can replace similar parts such as ST10 - 90KS, ST10 - 90, and many others. This SPST thermostat can be easily adjusted from 60 degrees C to 90 degrees C. The screw terminals and contacts are rated at 240VAC 30amp. With a body width of 34.5mm, an overall width (including mounting lugs) of 50mm, a height of 43.4mm, and a depth of 30.6mm, it fits many modern electric hot - water services. If you're not sure if this part suits your appliance, just give us the full model number, and we'll check with the manufacturer. We've been in the appliance - parts business for over 25 years, so you can buy with confidence.

Using this thermostat is easy. First, make sure your electric hot - water service is turned off. Then, mount the thermostat on the surface following the provided instructions. Adjust the temperature within the 60 - 90 degrees C range according to your needs. When using, always ensure the power supply is stable and within the rated 240VAC 30amp. If you're unsure about the installation or operation, contact us. For maintenance, keep the thermostat clean and free from dust. Periodically check the screw terminals to make sure they are tight. If you have any problems, reach out to us, and we'll assist you.
