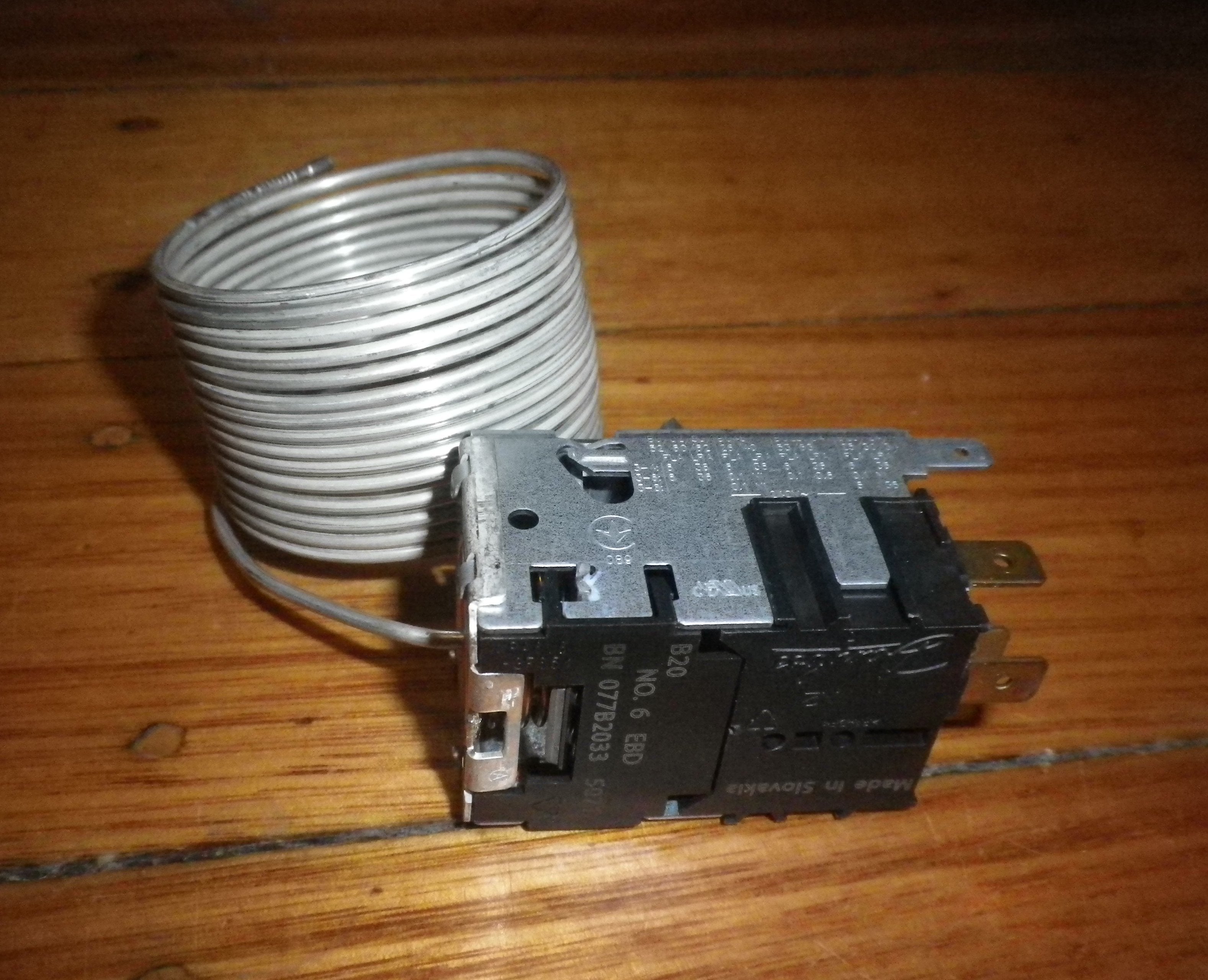

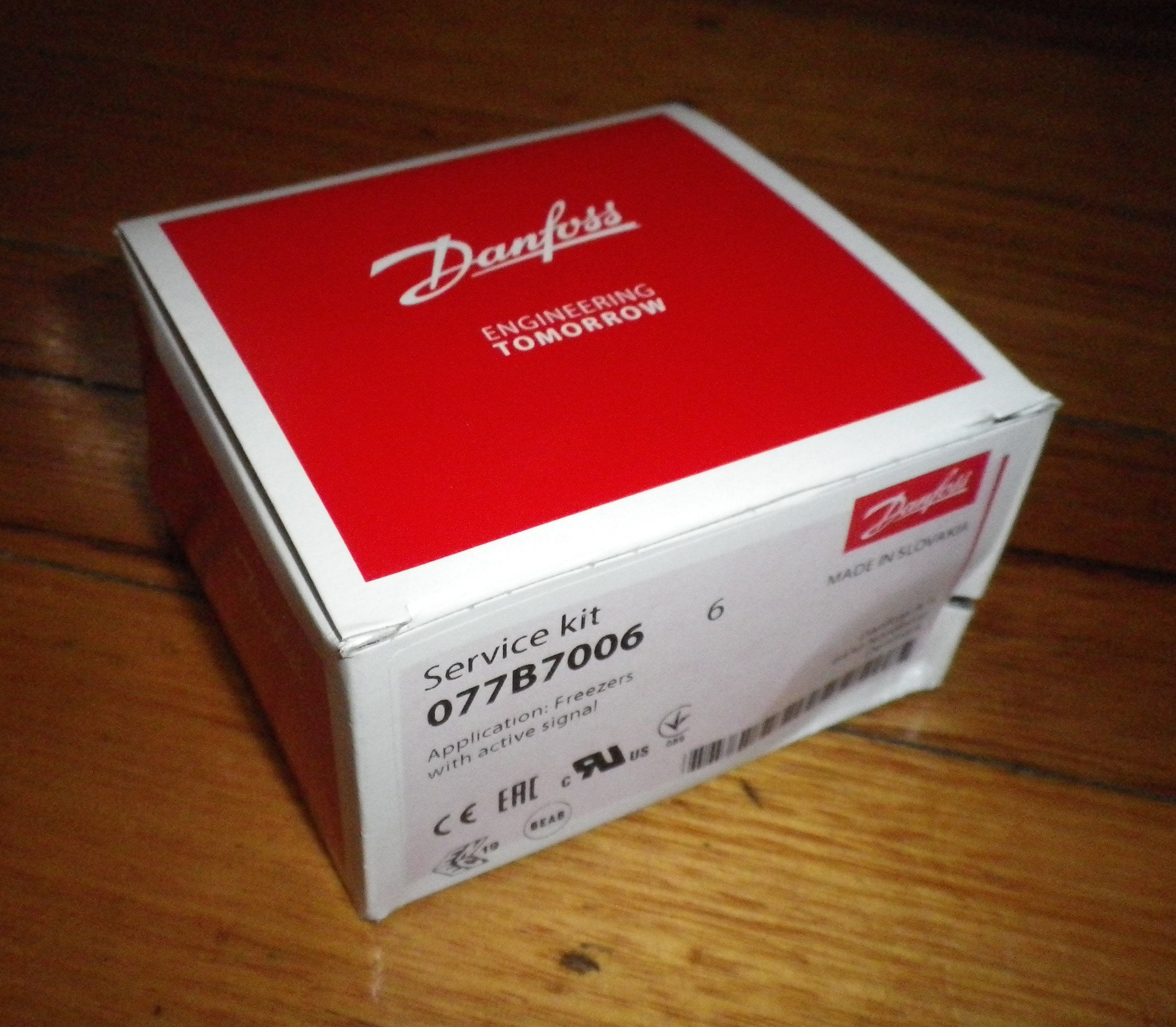

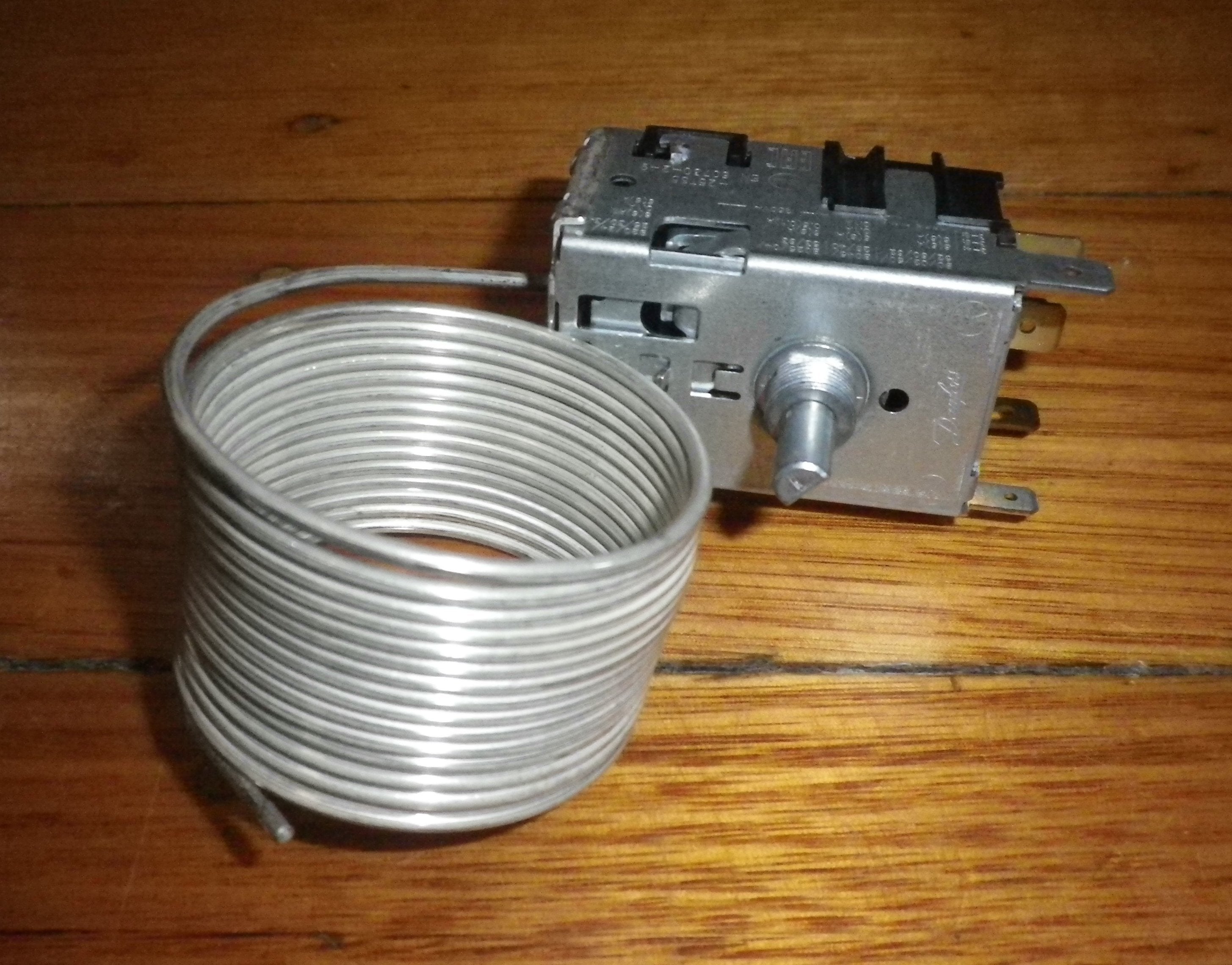

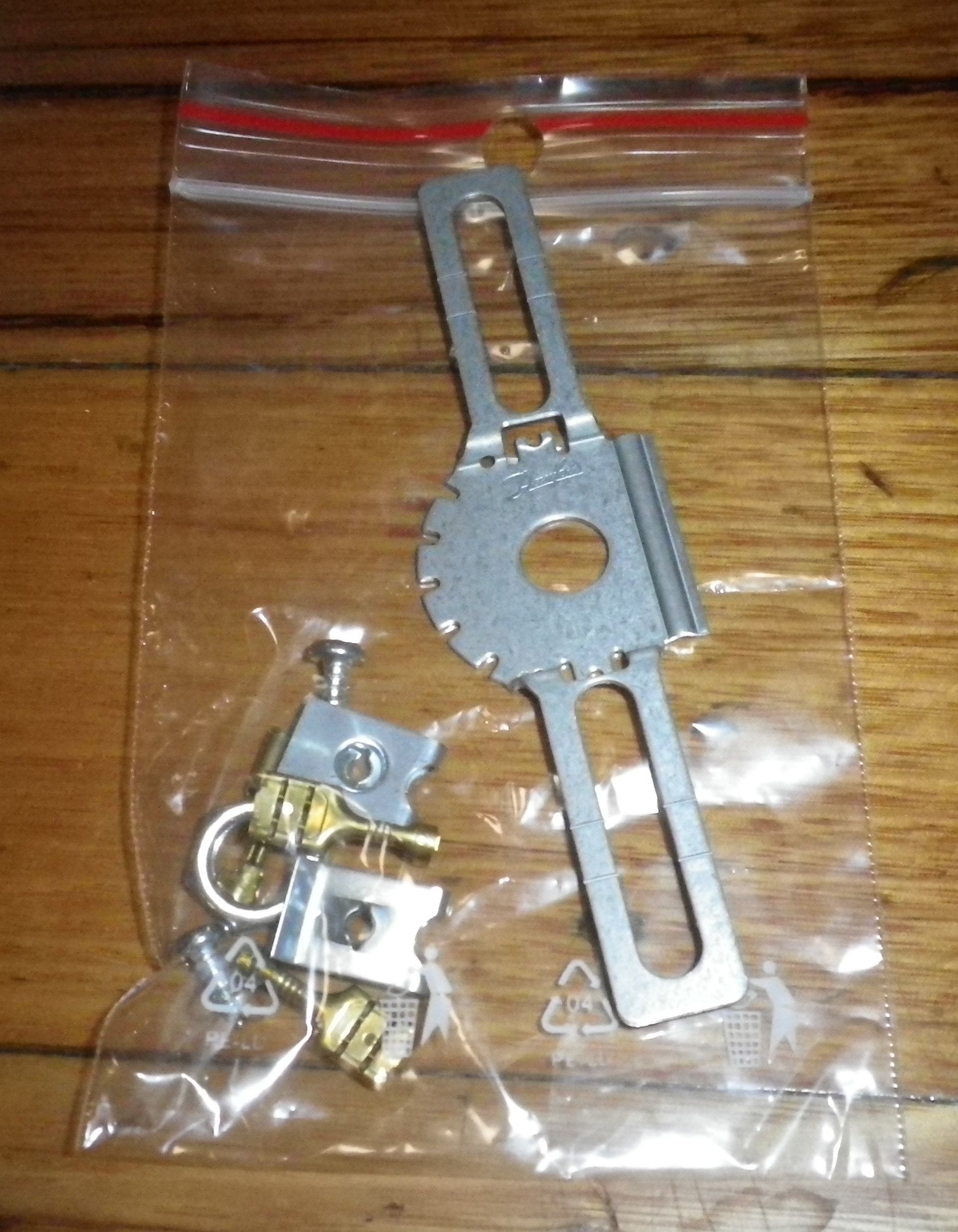

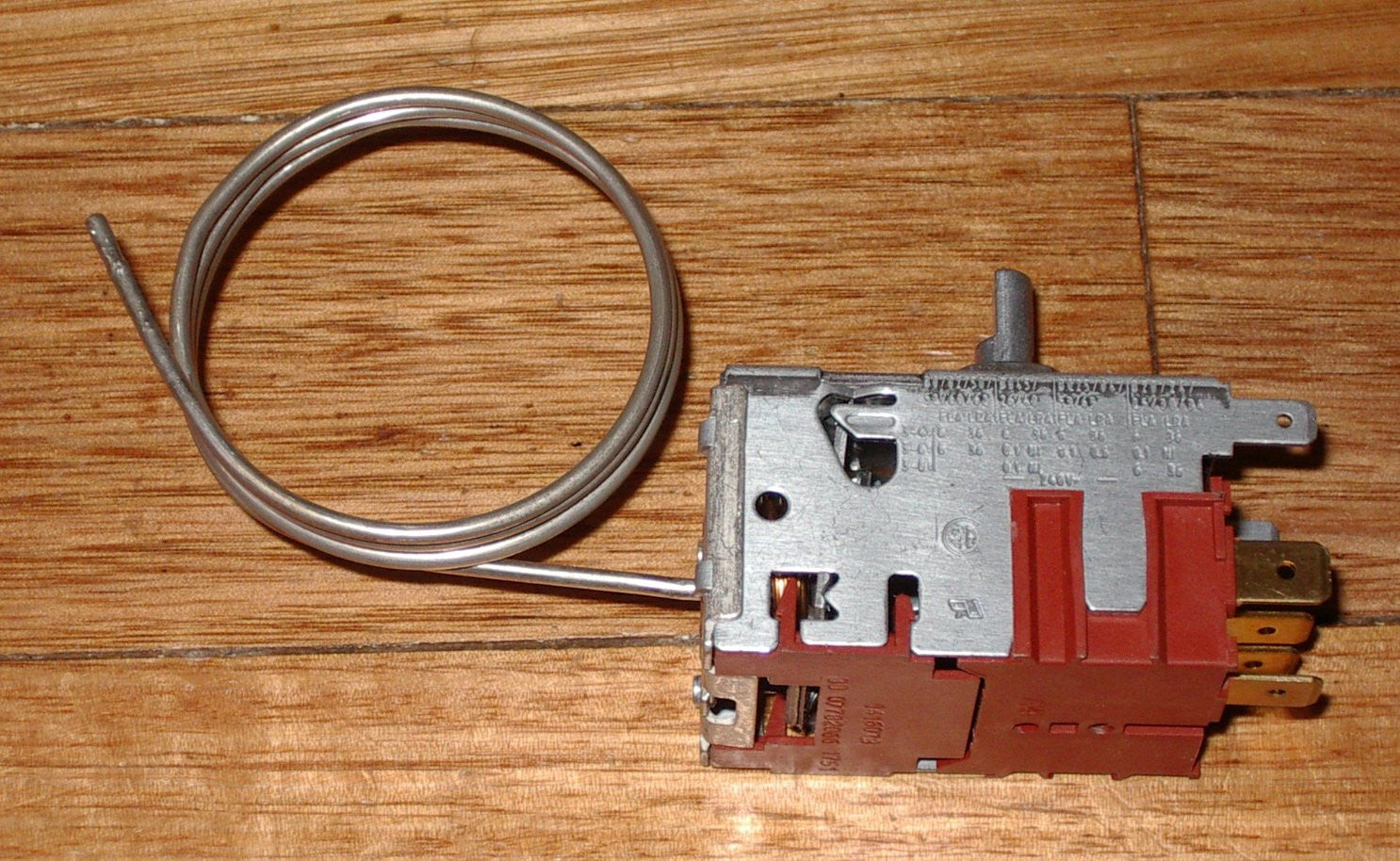

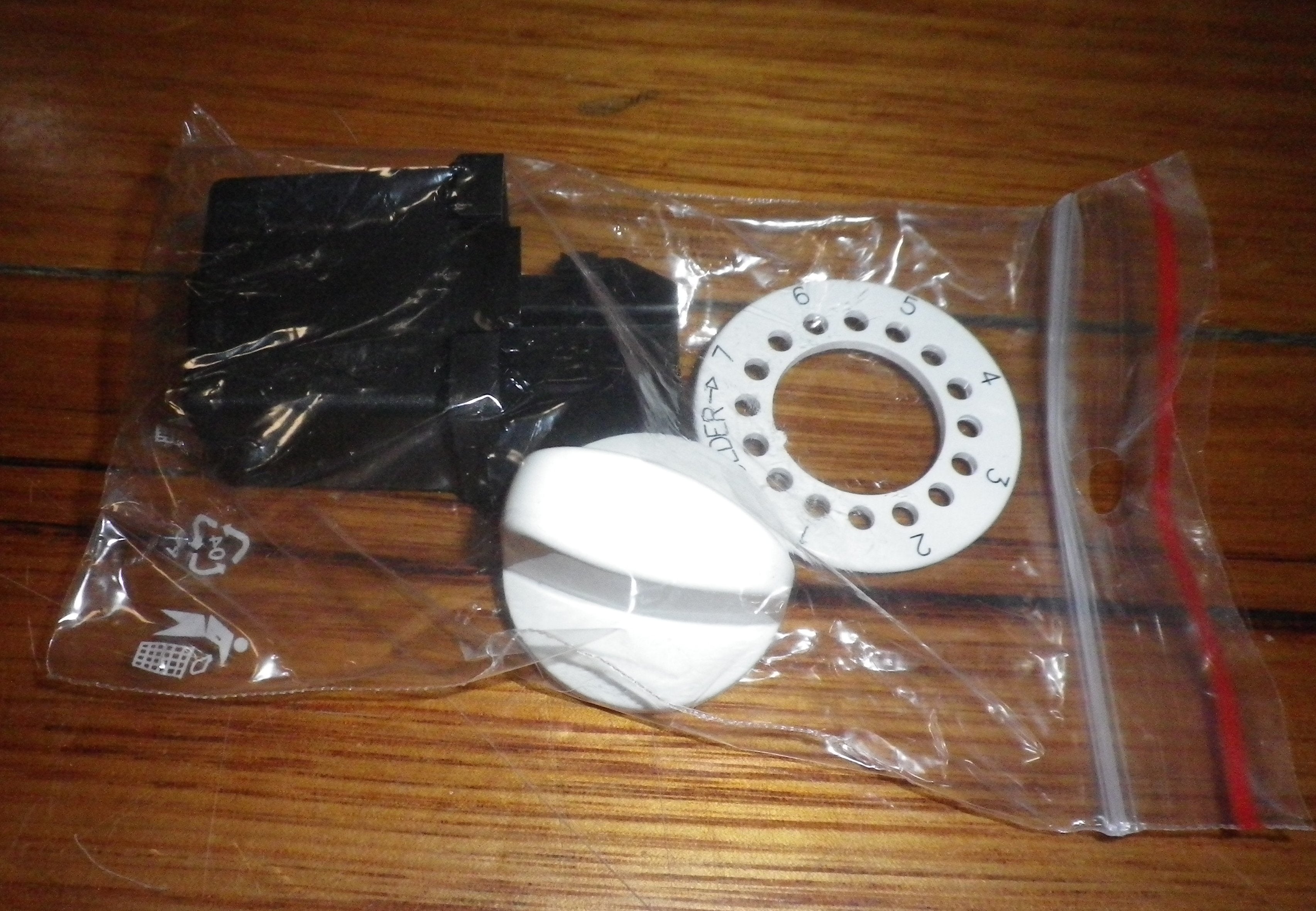

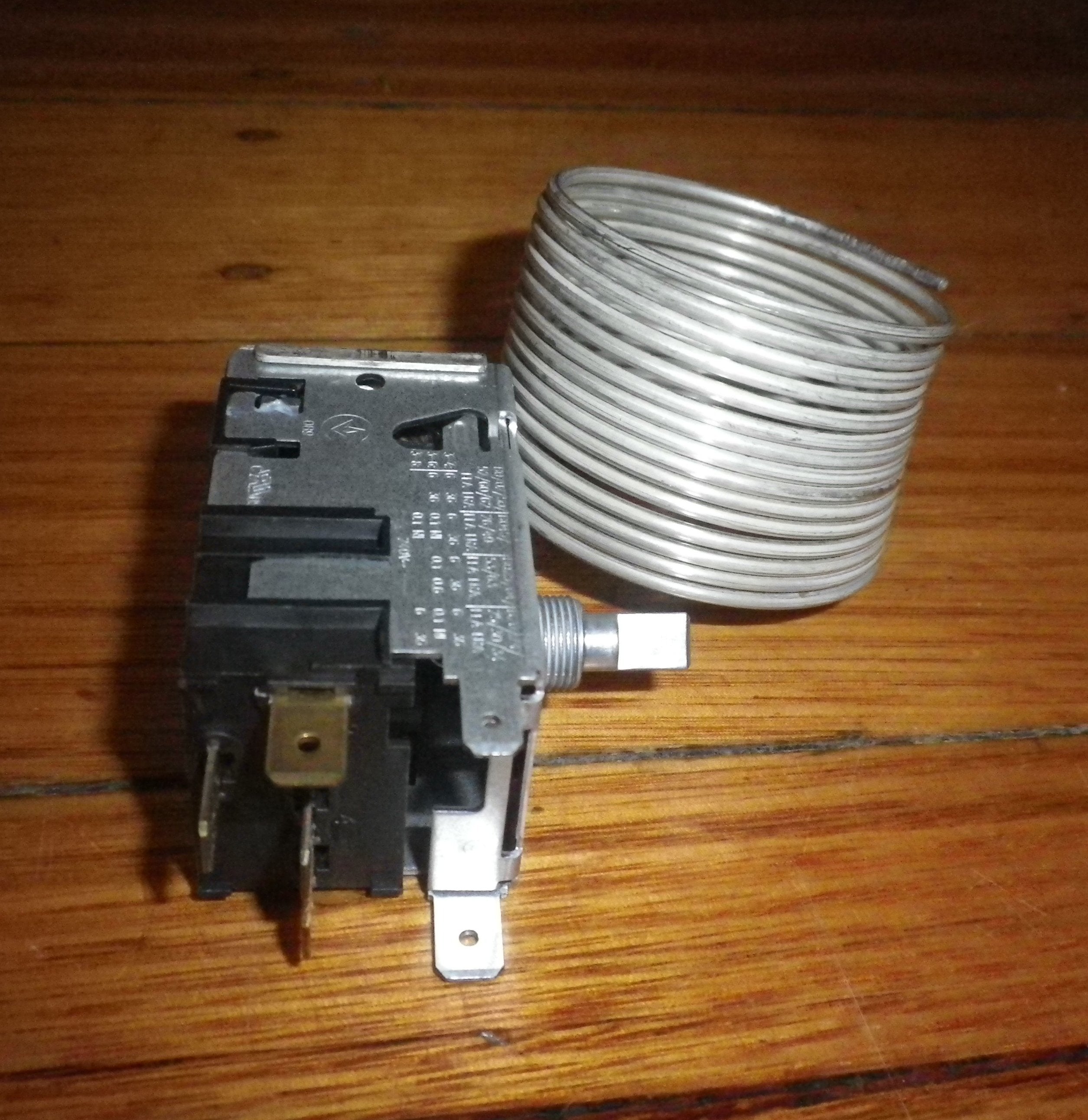

This is a high - quality Danfoss thermostat designed for Westinghouse no - frost fridges. It replaces part numbers 077B2066 and 1406184. With Electrolux Part No. 1416073, Danfoss 077B7006, and 077B2033, it comes as a service kit. It fits many late - model Westinghouse two - door no - frost fridge/freezers where the thermostat is installed in the freezer's cold air flow. The original 077B2066 thermostat is out of stock, and this Danfoss service kit is the perfect replacement. It includes a knob and mounting hardware, though you may not need them. The capillary is 2.3 meters long, much longer than the original and can be left wound up. It fits Westinghouse models like RS631D, RS652F, RS652G, RS652K, RS652M and more. The temperature settings are as follows: Cold - cutout Temp is - 34.5°C, Cold - cutin Temp is - 24°C, Warm - cutout Temp is - 17°C, Warm - cutin Temp is - 10°C, and Signal Pos. Warm - cutin is - 6°C. It might also be suitable for other freezer applications with matching characteristics. We've been in the appliance parts business for over 25 years, so you can buy with confidence. Just be careful not to sharply bend the capillary tube as it can damage the thermostat.
Using this thermostat is straightforward. First, make sure your Westinghouse no - frost fridge is unplugged. Then, remove the old thermostat from the freezer section where the cold air flows. Install the new Danfoss thermostat in its place, using the included knob and mounting hardware if needed. Plug the fridge back in and it should start working. When using, remember not to bend the capillary tube sharply, as this can damage the thermostat. For maintenance, keep the thermostat clean. You can use a soft, dry cloth to wipe it occasionally. Check the temperature settings regularly to ensure your fridge is running at the right temperatures. If you notice any issues, contact our customer service as we've been in the business for over 25 years and can help you out.
